Specifications

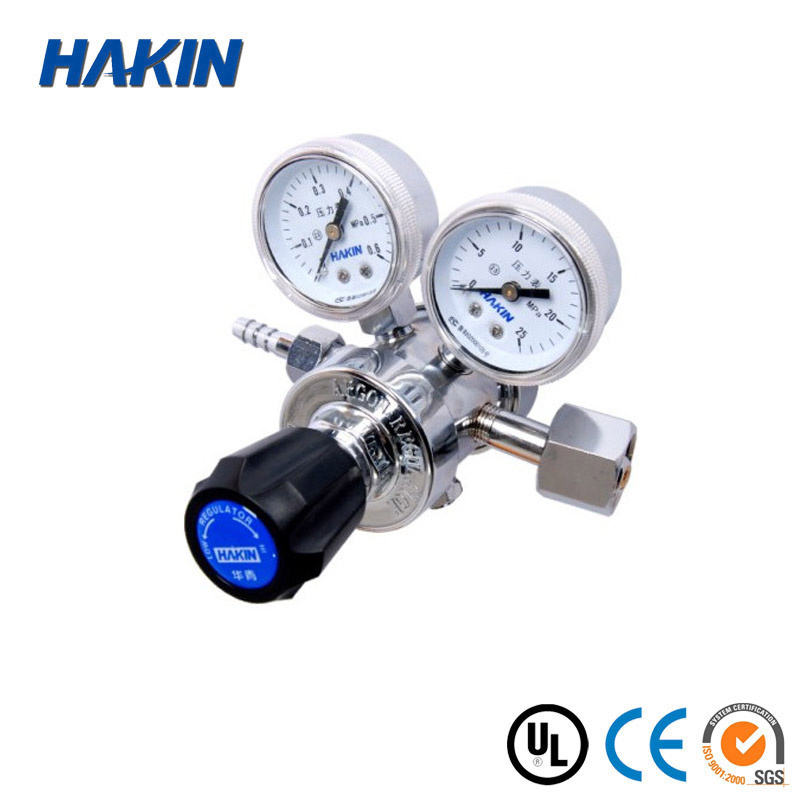

Dual stages Argon gas regulator
Model: 195TC
Gas: Argon
Measuring range: 0.6-25MPa
Rated Inlet pressure: 15MPa
Rated outlet pressure: 0.3MPa
Rated flow: G5/8"
Outlet thread: M12X1
Above can be customized.
Qingdao HAKIN group Co., Ltd was established in 1987, the factory specialized in manufacturing and exporting pressure gauge, pressure regulator and welding & cutting torch.
Specification / Model no#
All below specifications can be customised. |
Argon Gas Regulator |
YQAr-06 |
YQAr-731L |
YQAr-731L
golden color,
excellent design |
195TC-25L
double gauges,
dual stages |
195TC
dual stages
(gas:nitrogen,hydrogen
,argon,CO2) |
Input pressure gauge range(MPa) |
0 - 25 |
0 - 25 |
0 - 25 |
0 - 25 |
0 - 25 |
Output pressure gauge range(MPa) |
0-1 |
/ |
/ |
0-0.6 |
0 - 0.6 |
Input pressure (MPa) |
15 |
15 |
15 |
15 |
15 |
Output pressure (MPa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
Rated flow(L/min) |
25 |
25 |
25 |
25 |
25 |
Inlet thread |
G5/8 |
G5/8 |
G5/8 |
G5/8 |
G5/8 |
Outlet thread |
M16X1.5 |
M12X1 |
M12X1 |
M12X1 |
M12X1 |
Body Material |
excellent brass |
excellent brass |
excellent brass |
excellent brass |
excellent brass |
