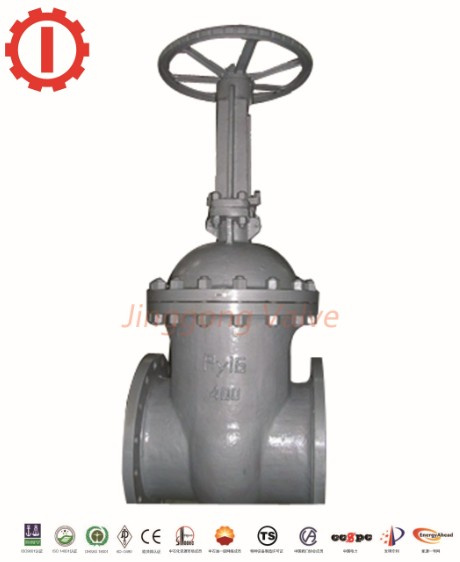

ASTM Carben Steel Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
T/T |
1) size: 1/2"-24"
2) pressure: 150-300lbs
3) applicable temperature range: -200-350¡
4) material: Wcb
5) applicable medium: Nitric, acetic acid, water, oil, gas and some corrosive liquids
Packing: Carton/wooden case/pallet
Parts material:
Part namematerials
Bodyastm wcb a216
Discastm wcb a216 +13cr
Stem 13 cr
Nut ASTM a194 2h
Bolt ASTM a193 b7
Gasjet ss324 + graphite
Bonnet ASTM a216 wcb
Seat 13cr
Packing graphite
Bolt a193 b7
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Material: |
A216 Wcb |
| Seal Surface: |
A105+13cr |
Jinggong Valve Factory is one of the leading valve manufactures in China which was established in 1978. It can offer a wide variety of materials and sizes of valves which was extensively used in petroleum field, energy field, metallurgy, chemical industry, power station and so on, including the butterfly valve, ball valve, globe valve, gate valve, check valve, needle valve, control valve, knife gate valve, bellows valve and other special valves. The main materials of valve body are ductile iron (for gas valve), cast and forged carbon steel, high-temperature alloy steel and anti-corrosive austenitic stainless steel etc. Its nominal diameter is 1/8"-80" and nominal pressure is 150lb-2500lb.
Meanwhile, our products had acquired national pressure pipeline AZ authentication, API6D, CE certification and ISO9001 standard in Moreover, our factory is one of the members of Materials Source Market of Sinopec, Supplying Network of valves of National Power Systems, the firs rate supplying network of high-MID pressure valves of CNPC, China General Machinery Valve Industry Association, Wenzhou Pump & Valve Association and Scientific & Technological Information Network of Machinery Industry Valve.
Our works had got the right to import and export, thus ours products had exported to many countries, such as the Africa, Europe, South Asia, Japan, North America, Middle East, etc. Accordingly, we had earned good reputation between our clients in those countries for ours high quality, competitive price and excellent after sale services.
We adhere to two F, that is "Credibility First, Quality First". We endeavor to continuously supplying our best quality and efficient services to all of our customers and giving every user and consumer in the world a chance of enjoying the benefits of our cooperation. All your inquiries will be met with a quick response and courteous welcome.
