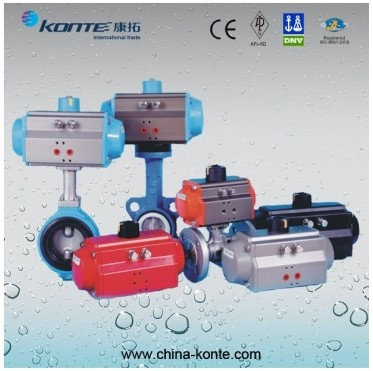

Pneumatic Actuator AT Series
Features
1. Dual Pistion Rack
2. Integrated Design
3. High Output Power
4. Integrated Design
5. Long Service Life
6. Stainless steel fasteners for long term corrosion resistance
7. The interface between piston, pinion and body is made of low friction material
Specifications
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Single-acting (spring return), double-acting
6). Optional accessories: Solenoid valves, limited switch, electric position
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time
Standards
A. Interface between actuator and valve: 4 or 8 bolt orifices according to DIN/ISO
5211, the axle assembles orifice according to DIN 3337
B. Interface between actuator and control valve: 7100 D/S-7350 D/S according to
NAMUR or VDI/VDE 3845, 7040 D/S-7090 D/S connecting via the adapter plate
C. Interface between actuator and signal box: According to VDI/VDE 3845
Introduction
I. Actuator Body
Boy material is aluminium alloy. Internal and external surface are treated with anodic oxidation and polishing. Outer surface is nickle plated so that the anti-corrosion fuction of actuator and minimum friction against pistons can be guaranteed.
II. End Cover
End cover material is die-casting aluminium. End cover is treated with epoxy polyester so as to best guarantee the anti-corrosion performance.
III. Drive Shaft
The drive shaft material is medium carbon steel with fine processing and nickle plating so that the pistons have better quality in anti-corrosion, anti-friction, etc.
IV. Piston
Piston material is die-casting aluminium alloy. Maxmium torque can be output when the actuator is actuated with certain pressure.
V. Piston Seal
NBR-70 rubber sealing is applied to ensure the normal and reliable performance of actuator under normal temperature. FPM can be also applied according to clients' requirements.
VI. Travel Adjustment
Plus/Mimus 5 degree travel can be adjusted through the two bolts.
Products Show
Contact
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Ada hu
|
Brand: |
KT/OEM |
|
Applicable Media: |
Water, Oil, Gas, Nitric Acid, Acetic Acid |
|
Certification: |
CE/API/DNV/FDA/ISO9001-2008 |
|
Sample Testing: |
One Sample for free( Under $10),Freight Collect |
|
Packing: |
Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
|
Payment: |
T/T, L/C, D/P, Western Union, Paypal |
|
Port: |
NINGBO/SHANGHAI, Customers' Request |
|
Delivery Time: |
Within 35days after receiving T/T deposit Payment |
|
Term of Delivery: |
FOB/CNF/CIF, Customers' Request |
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
