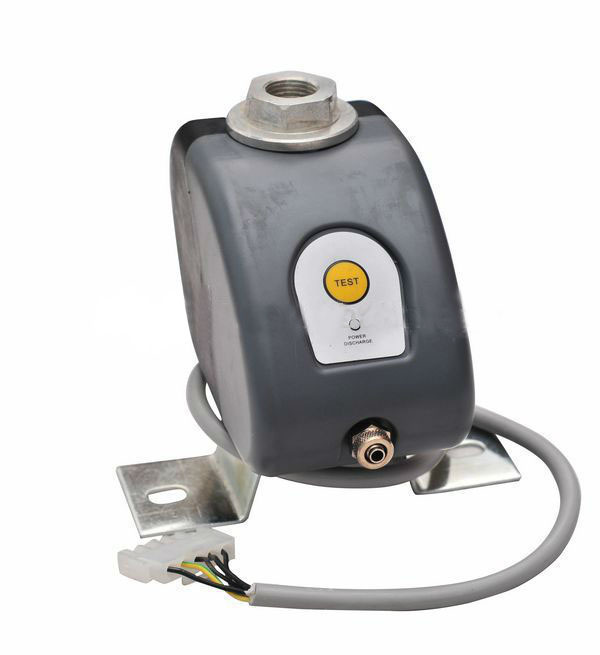

Atlas Copco Air Compressor Parts 1622855181 Electronic Drain Valve

Atlas Copco Air Compressor Parts 1622855181 Electronic Drain Valve
Price: US $ 367/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
product information


atlas copco air compressor parts 1622855181 automatic drain valve
split type electronic drain valve 220v auto drain valve
rotary air compressor spare  parts integrate electronic drain valve

automatic water drain valve
1/4 inch diameter electronic timing drain valve
temperature :normal temperature(-20~85)degree

Feature:
1.automatic water drain valve for various air compressor
2. 1/4 inch diameter electronic timing drain valve for compressor parts
3. load resistance: current output type max 800 Ω;Voltage output type: more than 50 kΩ
4. Seal level: IP65
5. Mechanical connection (thread interface) : M20 * 1.5 * 1.5 M22 G1/2 NTP1 M11 M16/4 * 1.5 * 1 ZG3/8 NPT1/4 G1/8 M12 * 1.5 NTP3/8, etc



Compressor valve series
General industrial equipment different types air compressors parts
integrate electronic drain valve for air compressor valve

The electronic drain valve is a full-feature automatic electronic solenoid drain valve that cost-effectively removes condensate from compressors, receivers, dryers, aftercoolers, filters and drip legs.
.

Technical data:


OFF/Interval time0.5-45 minutes ,adjustable
ON/Discharge time0.5-10seconds ,adjustable
Manual Test SwitchMicro switch
Supply Voltage24-240V AC/DC ,50/60HZ
Current Consumption4m AMaximum
Ambient temperature-40°C-60°C
Protectin gradeIP65
shell materialABS plastic with flame retardant
Electrical ConnetionDIN43650A
IndicatorsLED indicating lamp
Design standardVDE 01 10C
ValveValve
Type2/2-way direct acting
In/Out port size1/4",3/8",1/2"
Max.working pressure16bar,40bar,80 bar
Valve materialForged brass
InsulationThermal group H(200°C)
Voltage24V/220V/110V/380V AC/DC 50/60HZ
Voltage options±10%
Min/Max.temperature2°C-55°C
Max.media tempertureMax.90°C






  Company Profile
Jiubei  Industry Co., Ltd was established in 2000.  We are a Hi-Techcompany .
specialized in research, development, manufacture and distribution of Air compressor spare parts.  Expect produceing air compressor replacement spare parts , we also supply the maintemance of air compressor , We have a  very professional  air compressor maintenance team, They service for most of our local factory and has a wealth of experience on air compressor .
If you have any problems of  air compressor,  expect the compressor spare parts ,  we also could supply  the maintenance  advise for free,  Try our best to help you solve your problems.

  Our Service

All the compressor parts have a warranty for at least half a year.
Full quotation as your required will be reply in within 24 hours.
Service 24 hours a day, 7 days a week.
Accept specific order and special requirement.
Could provide free maintenance advise for your compressor




Main typeScrew air compressorOil-free Compressor


Piston air compressorProtable air compressor



Main brand:Atlas Copco


SullairHitachi


FushengKaeser


Bogecompare



Main products:Air intake ValveThermostat Valve


Solenoid ValveBlow off Valve


Drain ValveMinimum Pressure Valve


Temperature SensorPressure Sensor


Unloading Valve KitsStop Oil Valve Kits


Check Valve kitsOil-free Service Kits


ControllerGear Wheel


CouplingHose & Elbow


Air FilterOil Filter


Oil SeparatorOil Level Indicator


Air-endUsed Air Compressor


  Package & Delivery
Package each product as international packaging standard.
Your design package request also acceptable


  OEM Part Number
Controller Panel P.N
1900070001  1900070003  1900070004  1900070005  1900070007  1900070008
1900071101  1900071102  1900071103  1900071001  1900071011  1900071012
1900071002  1900071281  1900071292  1900071031  1900071032  1900520012
1900520011  1900520001  1900070105  1900071001  1900071011  1900071012
1900071002  1900071281  1900071292  1900071031  1900071032  1900070125
1900070122  1900070102  1900070103  23009848  39825815  92948884
39842786  22136444  23748593
Gear Set P.N
1622002300/2400 1622002500/2600  1622002700/2800  1622003500/3600
1622311067 & 1622311068  1622311025 & 1622311026  1622311027/28
1622311029/30 1622311033/34  1622311035/36  1622311037  1622311041/42
1622311043/44  1622311045/46  1622311049/50  1622311053/54  1622311055/56  /1622311059/60  1622311063/64  1622311065/66  1614933000/1614933100
1614930000/1614930100  1614930800/0900  1614931000/1100  1614931200/1300/  1614932200/2300  1614932400/2500  1614932600/2700  1614933000/3100
1614933200/3300  1614933600/3700  1614933400/ 1614933500  1622077023/24
1622077027/28  1613965000/5100  1613817400/818000  161389800/8100
1613898200/8300
Pressure Sensor P.N
1089958001 1089057511 1089057551 1089057541 1089057533 1089057573
1089057565 1089057535 1089057574 1089057564 1089057544 1089057578
1089057528 1089057520 1089057530 1089057554 1089057543 39413307
39428305 39875539 39877618 39929435 39853791 39853809 42852483
39883186 39921713 39853775 39853775 39853783 39875539
Cooler P.N
1613830901 1621700202 1621700302 39893003 54365945 1202973900
1613782202 1613782203
Air Filter P.N
1621054699 /1621574300 / 1614874700 /1613610500 /16147273 00/1622314200 /162365200 /1621054699 /1621574300/1621054700/ 1621574200/1030097900/2906009200/2914931000/1613800400/1613740700/2914930600/2903101200/2903101200......
Oil Filter P.N
1202626301/1202626301/1202626302/1202626203/1202626204/1202627302
1617703909/1617704111/1617704203/1617704201/1617704303/1617704301
1617704305/1617704104/2900058200/1619622700/2901196100/2901196300
89295976/42855429/42888214/39588470/39588777/99273906/39750732
Oil Separator P.N
2901194402/ 1622035101/1613901400/1612386900/1613750200/1622007900
1622051600/1613243300/1613688000/1613839700/1613839702/1622314000
2252631300/1614905400/1614642300/1622365600/54595442/39831888
39751391/92754688/39894597/42841247/39863865/39890660
Repair Kit PN
2901050300/2901021200/2901007700/2901050301/2901006800/1613235600
1619733300/1622375980/2901146400/1622375981/2901021100/1613814482
1613814400/250018-262/250019-444/250018-456/250018-262/2250116-697
Orther Valve P.N
1089062110/ 1089070202/1619733300/1619756000/ 1622369480/ 1202586903/
81335509/ 250017-280/ 22516025/ 22516025/ 39312905 /250038-666/250038-755/8829009-775/88290001-006/ 88290006-775/39141944


Prod Model: 1622855181
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Products: Drain Valve
Type: Valve, Universal for Air Compressor
Model Number: 1/4 Inch Automatic Water Drain Valve
Construction: Integrate Electronic Drain Valve
Voltage: 220V
Medium Temperature: -20 To150 Degree
MOQ: 1 PCS
Warranty: Half a Year
Delivery: 3 Working Day
Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".

We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.

Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
