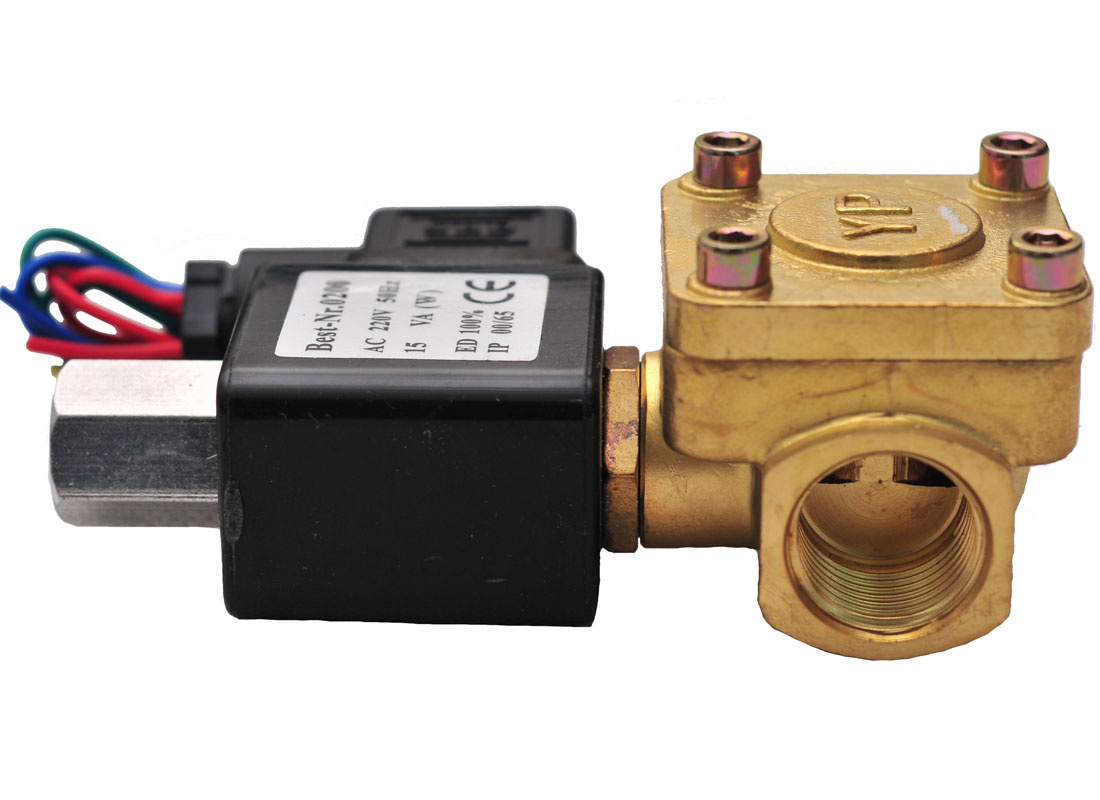

Atlas Copco 220V Burket Solenoid Valve Air Compressor Part
Compressor parts --- solenoid valve
220V solenoid valve atlas copco air compressor part
Products Name: solenoid valve
Apply : Screw air compressor
Part number: 2200599753/1089062157
| Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa |
| 3.Life span can be over 1 million times |
| Medium | Air, water etc. |
| Temperature | NBR:-10°C to 80 °C |
| EPDM:-10°C to 120 °C |
| VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON |
| Amature tube-stainless steel 304 |
| Plunger-stainless steel430F |
| Stop-stainless steel 430F |
| Springs-SS304 |
| Shading rings- stainless steel 304 |
| Business scope |
Mechanical Seal :
| Temperature Sensor | Pressure Sensor
|
| Maintenance Kits | Solenoid Valve | Thermostatic Valve
|
| Air intake | Wheel Gear
| Pressure Maintaining Valve |
| Air Filter | Oil Separator | Oil Filter
|
| Oil Level Indicator | Circuit Board Master Control | Air intake valve |
| Used air compressor | Air-end | Oil level indicator |
| No. | Specification of Mechanical Seal | Type of the Lip | Coupling Sleeve | Model of the Machine |
| InnerΦ *OuterΦ*H(mm) | InnerΦ *OuterΦ*H(mm) |
|
|
| 1 | 37*51*10 | Double | 30*37*38 | Atlas 15HP2901056100 |
| 2 | 40*62*8 | Double | 35*40*20 | Rodcomp 15HP B60 |
| 3 | 40*62*8 | Single | Rodcomp20-30HP B101 |
| 4 | 50*72*8 | Double | 45*50*25 | Rodcomp50HP B170 |
| 5 | 70*90*10 | Double | 60*70*40 /30/28 | Rodcomp75HP B201 |
| 6 | 70*90*10 | Double | 60*70*40 | CompAir75HP |
| 7 | 70*90*10 | Single | CompAir75HP |
| 8 | 35*50*8 | Single | 30*35*30 | CF50G |
| 9 | 35*50*12 | Double | 30*35*30 | GHH15-20HP CE55 |
| 10 | 35*47*7 | Single |
| 11 | 45*65*12 | Double | 40*45*30 | GHH70 Handpiece(QS70) |
| 12 | 45*60*8 | Single |
| 13 | 68*100*12 | Double | 60*68*45 | GHH100HP(CF110/CF128J) |
| 14 | 68*90*10 | Single |
| 15 | 68*90*10 | Double | 60*68*45 | GHH100HP(CF128LG) |
| 16 | 60*80*8 | Single | 50*60*40 | Fusheng 30HP |
| 17 | 60*80*8 | Double | 50*60*40 |
| 18 | 65*90*10 | Single | 55*65*45 | Fusheng 50HP |
| 19 | 65*90*10 | Double | 55*65*45 |
| 20 | 68*90*10 | Single | 60*68*45 | Fusheng 75-100HP |
| 21 | 68*90*10 | Double | 60*68*45 |
| 22 | 100*120*10 | Single | 85*100*55 | Fusheng 150HP |
| 23 | 68*90*10 | Double | 60*68*45 | ECOAIR 100HP |
| 24 | 45*65*8 | Single | 40*45*20 | BOGE30HP |
| 25 | 50*65*8 | Single | 45*50*25 | BOGE50HP |
FAQ
1. What's Minimum Order Quantity of your air compressor part?
the MOQ is 1pc, need you pay for the delivery cost.
2. What's kind of your packaging for the air compressor part?
neutral packing or brand pack as your requirement
3. Could I get some samples? How could i pay the sample payment?
yes, we can provide sample, but not free.
payment: paypal, westunion ,TT
4. How long is your Delivery Lead Time ?
If there is stock, the lead time is about 2 WORKING DAYS after we get the payment, if need to be produced, it depens.
5. Could you Calculate the shipping cost for me?
Yes, we are honored to do that for you! Before the freight , please well let us know which seaport or airport near your place.
6. what's the delivery way?
shipping way: air freight, express, sea
