Production inforamtion

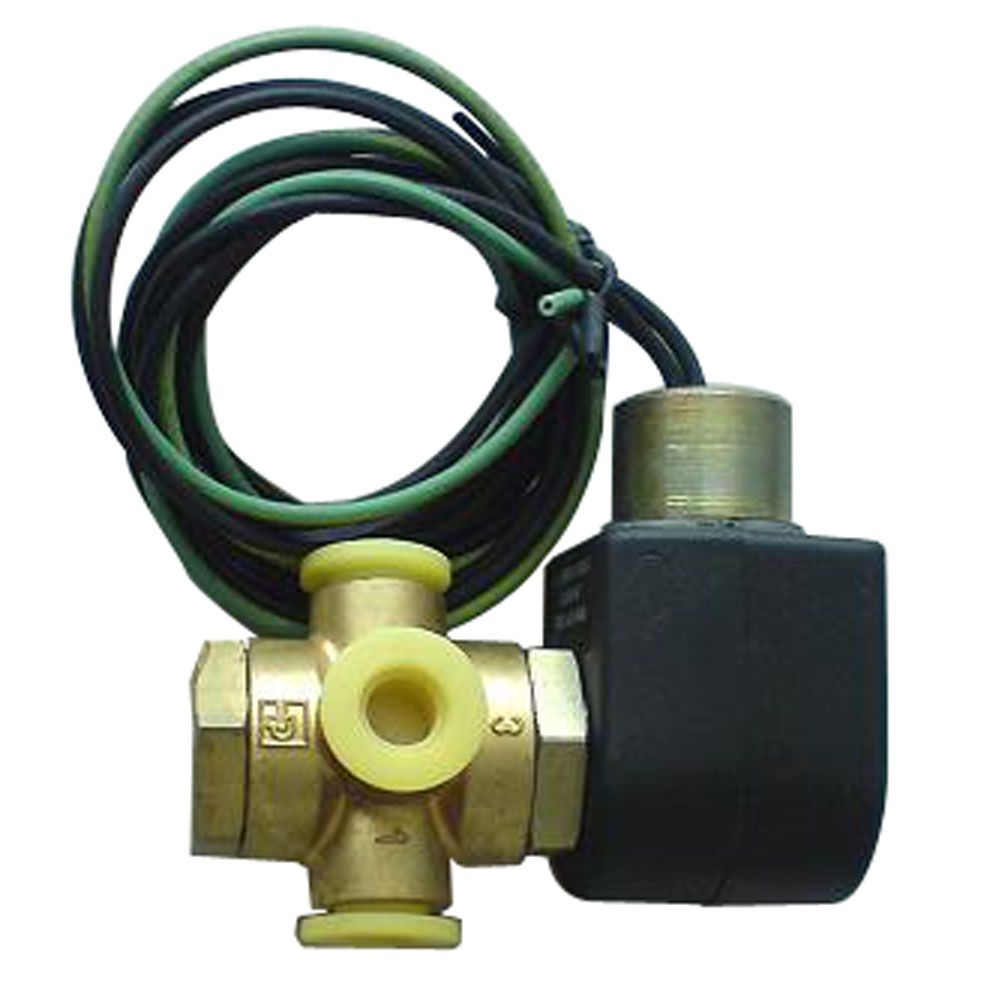

BOGE 24V solenoid valve air screw compressor part
Normally closed solenoid valve
| Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa |
| 3.Life span can be over 1 million times |
| Medium | Air, water etc. |
| Temperature | NBR:-10°C to 80 °C |
| EPDM:-10°C to 120 °C |
| VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON |
| Amature tube-stainless steel 304 |
| Plunger-stainless steel430F |
| Stop-stainless steel 430F |
| Springs-SS304 |
| Shading rings- stainless steel 304 |
Product range
(1) All kinds of compressor valve series
(2) Temperature sensor &Pressure sensor
(3) Coupling &Gear Wheel and other spare parts
(4) Elektronikon controller spare compressor parts
(5) Quality replacement for atlas copco / Hitachi / sullair / Compair / Kobelco accessories
| NO | Model | Description | P/N |
| 1 | GA11-22 | Unloading valve kit | 2901000201 |
| 2 | Min pressure valve kit | 2901000600 |
| 3 | Drain valve kit | 2901071200 |
| 5 |
| Min pressure valve kit | 2901021800 |
| 7 | Oil stop valve kit | 2901021700 |
| 8 | Unloading valve kit | 2901021100 |
| 9 | Thermostat valve kit | 1619733300 |
| 10 | GA55-75-90C | Oil check valve kit | 2901007200 |
| 11 | Check valve kit | 2901007700 |
| 12 | Min pressure valve kit | 2901021800 |
| 13 | Unloading valve kit | 2901044800 |
| 14 | Thermostat valve kit | 2901007400 |
| 17 | Oil stop valve kit | 2901108400 |
| 18 | Unloading valve kit | 2901029900 |
| 19 | GA90-250 | Test valve kit | 2906009300 |
| 20 | Oil check valve kit | 2906009400 |
| 22 | Regulating valve kit | 2906009100 |
| 23 | Thermostat valve kit | 1619756000 |
| 24 | Unloading valve kit | 2906056300 |
| 25 | Connector kit | 2906057100 |
Why us?
1)14 years experience in air compressor parts area
2) High work efficiency
3) Original manufacturer and supplier
4) Seriously quality control
5) Superb technique
6) Excellent service
7) OEM and ODM are welcomed
Hongkong Jiubei Industry Limited was established in 2000, located in Dongguan city Changan town - "China National Machinery and Hardware Mold town".
We are a Hi-Tech company specialized in research, development, manufacture and distribution of Air compressor spare parts. We provide used air compressor, used air compressor airend, air compressor valves, air compressor controllers, air compressor service kits, air compressor filters, air compressor coolers and so son, With our rich experience, professional technology and rigorous quality control, our products has been widely used in various brand air compressors, such as Atlas Copco, Hitachi, Sullair, Kobelco, Fusheng with good feedback and continuous orders from more than 2, 000 customers in domestic and oversea market.
Sticking on the principle of "Super quality, satisfactory service", we are striving hard to build the most complete variety platform of air compressors spares parts in China.
