Auto Flush Plastic Push Fitting Solenoid Valve (YCWS10-01S)

Auto Flush Plastic Push Fitting Solenoid Valve (YCWS10-01S)
Price: US $ 2.4-3.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
What is our product parameter?

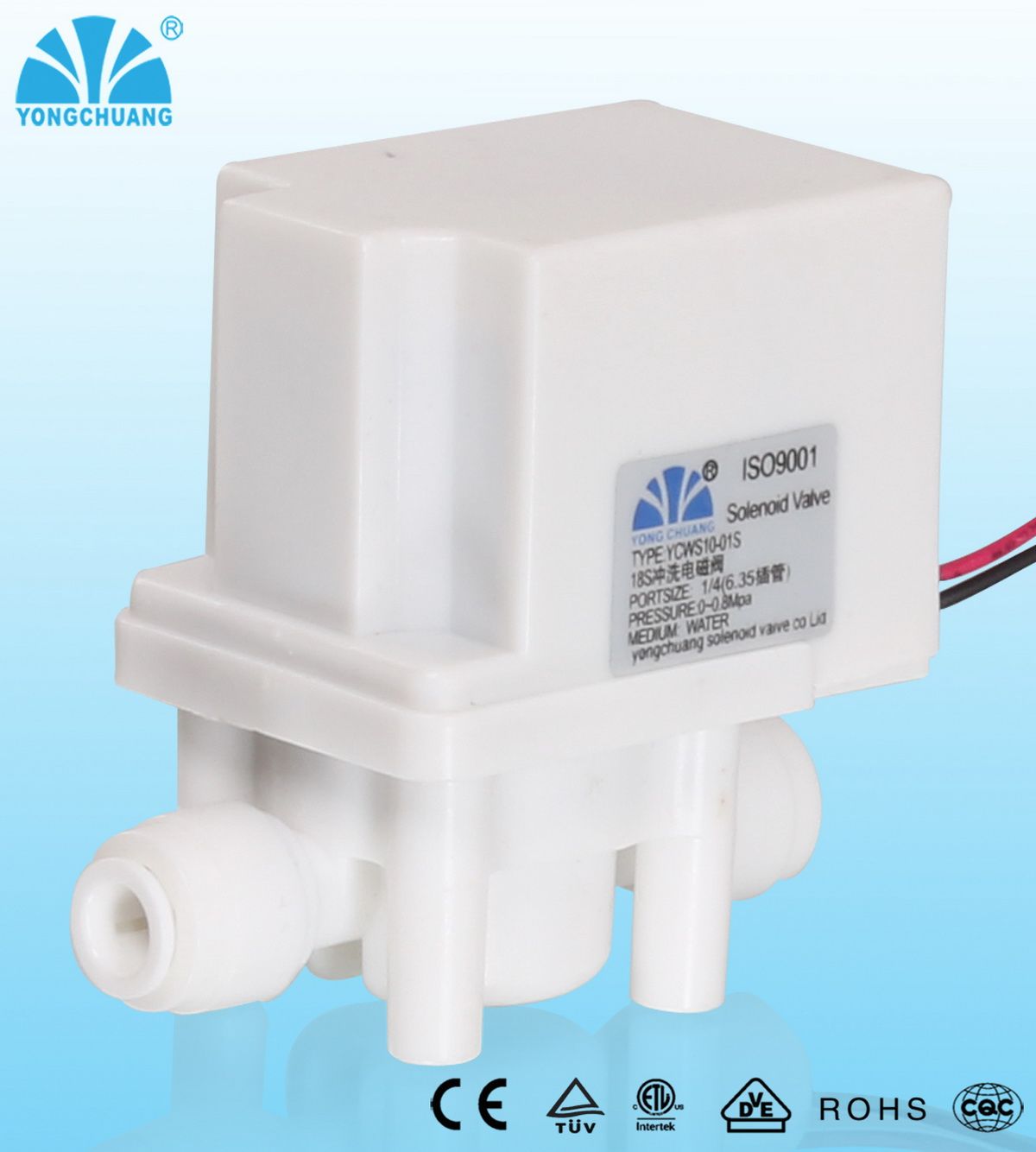

YCWS10-01s direct acting Normally closed  RO  automatic autoflush solenoid valve

Characteristic

1.Direct acting structure with less power   comsumption for  long time working
2.Applied to pressure system opened from 0.0Mpa
3.Life span can be over 500000 times

Medium
Air, water etc.
Temperature
NBR:   -10°C to 80 °C
EPDM: -10°C to 120 °C
VITON:-10°C to 150 °C

Pressure
0.0-0.8Mpa
Port size1/4' quick fitting
Port threadG.BSPT,BSP,NPT,PT
Orifice10.0mm
Voltage
DC-12V,24V
AC-24V,120V,240V/60HZ,110V,220V/50HZ

Tolerance
±10%
Coils
SA11B,9VA(AC),6W(DC) IP 65,100% ED

Special coils
Latching coil:DC6-24V as requested
Material
Body- POM.PP
Seal- NBR,EPDM,VITON
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304

Our service:

Why choose us ?

7*24 online EMAIL service!

1.We are OEM maker of solenoid valves for ASCO and Parker .

2.We have solenoid valve expert with 18 years experience in solenoid valve designing.

3.We are Alibaba Assessed 8 years Gold Supplier.

4.We have more than 2000 kinds of solenoid valves with more than 10000 square meters factory.

5.100% QC inspection Before Shippment.

6.CE/RoHS CQC approved products.


What is our shipping?

1.FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2.By Air or by Sea for batch goods, for FCL;Airport/ Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Package Informations:The volume of the box is 31cmx21cmx25cm


What is our payment terms?

1.Payment:T/T, Western Union, LC;30% deposits;70% balance before goods ready.
2.MOQ:1PC
3.Warranty :One and half years
4.Delivery Time:2-5 days for samples;15-25 days for batch goods.


FAQ:
Q1:What is the Warranty for the solenoid valves?
A1:For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make  replacement.

Q2::What is NO and NC?
A2:NO stands for normally open, that is , valve keeps open without power.If connect  it with power, the valve will get closed.NC     stands for normally closed,that is valve keeps closed without power.If connect  it with power, the valve will get open.

Q.3:What is the assembly way of solenoid valves?
A.3  we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.

Q4:Is there cheap shipping cost to import to our country?
A4:For small order,express will be best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest to ship by air.

Q5:Can we make customized product?
A5:Yes, we are good at making customized products.More than 30% of our products are customized products.We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.


Send your Inquiry Details in the Below, Click "Send" Now!



Ms.Rachel


Tel:86-574 62507202

Cell:86-15888537478



Prod Model: YCWS10-01S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode: Normally Closed
Port: 1/4' Quick Fitting
Power: AC5.5W
Life Time: 500000times
Place Of Origin: Ningbo, China
Guarantee: One Year
Function: Auto Flush 18 Seconds Delay
Type: Direct Acting
Valve Structure: Direct-Acting Piston Structure
Application: Household Usage
Connection Form: Quick Fitting
Power Supply: AC or DC
Usage: RO System
Material: PP, POM
Pressure: 0.0MPa~0.8MPa
Founded in 1998, Yuyao Yongchuang Solenoid Valve Co., Ltd. is a technical company specialized in designing and manufacturing solenoid valves, cylinders, flow meters, and heating air-conditioning control products. Our products have been widely applied in the automation of the fluid control.

We have three sales and service branches in Beijing, Guangzhou and Chengdu cities and our sales network covers more than 20 important cities. In 2000, our products merged into the North American market. Now, they have already expanded to different countries and regions in Europe, Southeast Asia and South America.

Since our establishment, we have been working with a clear aim ahead to provide high quality products and service to our clients. We have paid close attention to product development and innovation. From receipt of the firm order to release the items, we have serious procedure to control the quality, and offer the best service to our clients. There are specific persons in charge of providing technical expertise for quality problems and the quality control. There are procedures defining in process inspection and testing stages for the manufacturing process.

Concerning the global competition, we have import advanced equipment and invite many outstanding engineers to improve the product performance. According to the rough statistic, our total annual output is about 700, 000 valves. There are three production lines for industrial use valve, household appliances use valves and pneumatic cylinders.

Complied to ISO9001: 2000, we get the CE and TUV certificates and we can also offer high standard materials on the special request which conforms to our principles: Innovation, endless development; Individual solution for customer at best service; Attention to quality is one of our main guidelines.

We hope to develop the business of fluid control with more companies in the world, and we are convinced with our joint efforts the business will bring us a bright future.
