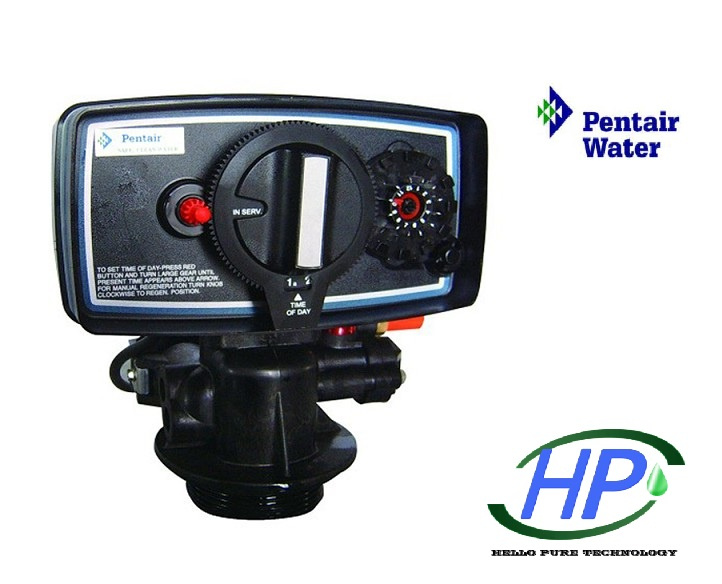

Fleck 5600 Mechanical Residential Control Valve
Features
Simple mechanical design is easy to use
Two valve body designs: one for downflow regeneration and one for upflow (covers every valve in the 5600 family - quick access to all internal components)
Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve's exterior
Ruggedly-built timer is designed with heavy-duty 3/8" wide plastic gears
5600 controls are user-friendly and easily programmable
Non-corrosive, UV-resistant, fiber-reinforced polymer valve body
Choice of 7 or 12 day clock or demand regeneration with a mechanical meter
Economical - small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor
Designed with double backwash
Options
Bypass valve (Fiber-reinforced polymer or stainless steel)
Backwash filter
Upflow regeneration
Low water use piston (uses as little as 29 gal./regeneration)
Meter-initiated regeneration
fleck valve Model
Model | Valve Material | Operation Cycles | Inlet
OutletX1 | Electronic Timer /Monitor | Flow Rate (M3/Hr)X2 | Maximum Backwash(M3/Hr)X2 |
| 2750 | Lead Free Brass | 5 | 1" | Independent | 5.9 | 5.6 |
| 2850 | Lead Free Brass | 5 | 1-1/2" | Independent | 11.5 | 11 |
| 2900 | Lead Free Brass | 5 | 2" | Independent×2 | 24 | 5.6 |
| 3150 | Lead Free Brass | 5 | 2" | Independent | 21.5 | 24.7 |
| 3900 | Lead Free Brass | 5 | 3" | Independent×2 | 56.8 | 22.7 |
| 9000 | Lead Free Brass | 5 | 1" | Independent | 4.7 | 1.9 |
| 9500 | Lead Free Brass | 5 | 1-1/2" | Independent | 9.7 | 3.6 |
| 2510 | Noryl | 5 | 1" | Independent | 4.3 | 3.8 |
| 5000 | Noryl | 5 | 3/4" | Incorporative | 4.7 | 3.8 |
| 5600 | Noryl | 6 | 3/4" | Incorporative | 4.5 | 1.5 |
| 5600SE | Noryl | 5 | 3/4" | Microprocessor | 4.5 | 1.5 |
| 8500 | Noryl | 5 | 3/4" | Independent | 3.4 | 0.9 |
