Home Valve Products Automatic Air Vent Valve; Bronze Air Release Valve

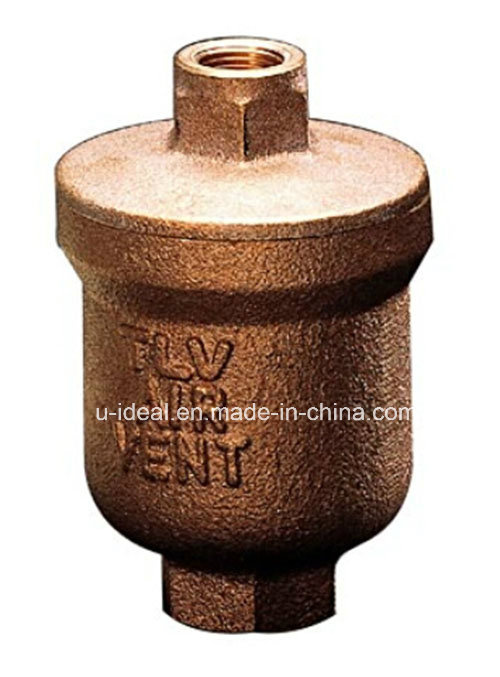

Automatic Air Vent Valve; Bronze Air Release Valve

Automatic Air Vent Valve; Bronze Air Release Valve
Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,D/P,Paypal,Western Union
Tianjin U-ideal Air vents to remove air from pipelines carrying liquids.

Main Applications:Air conditioning facilities, solar systems, water transport lines, water storage tanks.Transport of and facilities using other fluids.Water, hot water, other liquid other than toxic or flamable

Benefits and Features
Automated Air Venting During OperationAir entering the automatic air vent is rapidly discharged, even during water or liquid transport or during operation.The float responds with great sensitivity to condensate levels, automatically opening and closing the valve and thereby eliminating the need for manual labor.
Long Service Life
The float is the only moving part. Simple design, with no hinges or levers.
Tight Sealing
The grounded float and rubber valve seat prevent leakage
The precision-grounded float and 3-point seating prevent leakage

Application Areas
For use in applications requiring the steady discharge of air - both initial air and air generated during operation.
For applications requiring the discharge of large quantities of initial air, also install a rapid initial air vent.

Air vent valves
are used to allow the pressure in the tank to balance while preventing the spillage of the fluid through the vent lines. These valves allow the free flow of fluid or air in or out of a chamber or tank until they close, usually activated by a float.
During refueling, incoming fuel dis-places the air in the tank. The vent valve allows this air to escape through a designated vent path
When the tank is full, the float valve closes preventing the fuel from escaping. These valves also allow air to re-enter the tank as fuel is consumed, preventing dangerous negative pressure and potential fuel starvation. Vent valves protect the fuel tank from pressure damage resulting from expansion and contraction of the fuel due to changes in temperature. In some applications they incorporate measures to prevent the fuel from exiting the tank when the aircraft is inverted either during flight or in an emergency.

Composition:1.Body 2.cover 3.Float 4.Valve seat 5. Cover gasket 6.Valve seat gasket 7.Cover bolt 8.Nemeplate

Body materialBronze,Cast Iron
Max. Operating Pressure0.5/0.6/1.0 MPaG
Min. Operating Pressure0.05/0.1 MPaG
Max. Operating Temperature90°C

Thanks for visiting our site, welcome to send us your flow meter requirements by click contact us, we will reply you in 24hours.

Prod Model: UI1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection: Screw/Thread
Medium: Water
Pressure: Ordinary Pressure
Material.: Bronze, Cast Iron
Temperature: Ordinary Temperature
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.

Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.

Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.

Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.

Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge

Welcome to contact us, we will reply you in 24hours.
