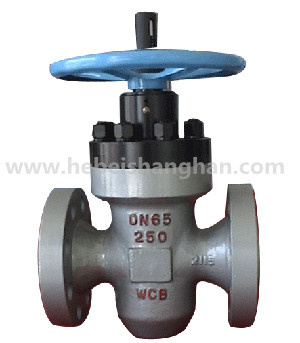

Automatic Compensated Balance Type Double Flat Gate Valve
Automatic Compensated Balance Type Double Flat Gate Valve
Usage: This valve is used to low and shor pipelines or power station which doesn't need full ball cleaning such as petroleum or petroleum products,natural gas,airport and electronic enviroment to shut the flowing of medium.
Main parts and materials |
Parts name | valve body,bonnet | Disc | Stem | Valve seat | Yoke nut | Packing | Seal grease |
Basic type | WCB | Alloy steel | Stainless steel | Weld hard alloy | Albronze | Graphite | Oil seal grease |
Sulfur type | Sulfur stainless steel | Sulfur seal grease |
Function and specification |
PN(Mpa) | Testing pressure(Mpa) | Suitable temperature(°C) | Suitable medium |
Shell body | Seal | low-pressure seal | G type | D type | General type | Sulfur type | Basic type |
1.6 | 2.4 | 1.76 | 0.6 | -29~250 | -46~121 | -29~121 | Medium containing H2S and CO2 500mg/m3 | Oil,gas,water etc |
2.5 | 3.75 | 2.75 | 0.6 |
4.0 | 6.0 | 4.4 | 0.6 |
6.4 | 9.6 | 7.04 | 0.6 |
150Lb | 3.1 | 2.3 | 0.6 |
300Lb | 7.6 | 5.52 | 0.6 |
