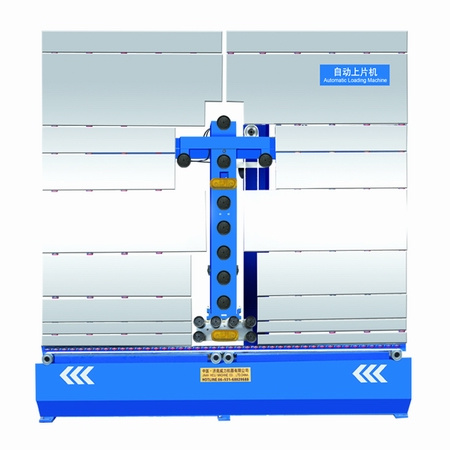

Main feature:
1 the back board adopts the laser cutting CNC bending welded steel plate, which has good strength
And is not easy to be deformed
2 the device of taking piece adopts imported linear guideway whose energy is generated by double
Servo motors. Its operation is smooth and accurate.
3 the vacuum sucker is imported, which has high negative pressure valve and strong suction, so that the glass can be sucked safety without falling out.
4 sycnchronous belt transmission, two way feeding, to achieve barrier-free connections with other devices
5 there are two models with auto and manual for operation. It is convenient to operate it.
Main techinical parameter
|
max glass size |
2500*3000mm |
|
min glass size |
500*300mm |
|
glass thickness |
3-12mm |
|
transmission glass speed |
0-30m/min |
|
suction arm speed |
0-12m/min |
|
the max size of suction arm stretched out |
1000mm |
|
the work angle of swing arm |
84-96 degree |
|
air consumption |
100L/min |
|
total power |
5kw |
|
total weight |
2000kg |
|
dimension |
3500*2000*3300mm |
Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industries. It is mainly specialized in producing door-window of energy and conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, America and Southeast Asia.
Jinan Weili Machine Co., Ltd is wildly accepted by customers from home and abroad.
New Century/ New Image/ New Weili.
Strong market competition consciousness.
Makes us always ahead of the advanced technology.
Honor acquirement, quality affirmation.
The most sincere service and the superior quality will offer to you.
Weili, in new image
Develop with you hand in hand to create the future.
Do business with whole heart, and treat others with great sincerity.
We regard honesty as the basis of the business, and sharing as the soul.
While we try our best to make each product perfect, We make efforts to become the giant of service. We respect the customers, understand them and communicate with them friendly. We regard the customers as our partner, and provide them with amazing service. To offer high-quality products and satisfying service is also to accomplish ourselves. We promise sincere service consent 100 years.
We believe when we deal in our products, we are dealing in trustworthy at the same time.
So be Weili, do business with whole heart, and treat others with great sincerity.
