Product Description

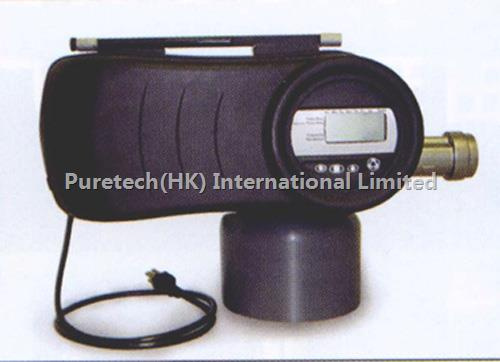

Autotrol multi-port valve have wide applicable range, can be used various water treatment equipments, such as:
*Sparingly soluble salts and particulates filtration;
*Manganese greensand filtration;
*Micro-organism absorbtion;
*Free Chlorine desorption & softener, etc
Main series
*255 multi-ports series
Max. Softener tank diameter: 350mm
Max. Water yield: 3m³ /h
Outside connection diameter: 3/4" or 1"
*263/268 multi-ports series
Max. Filter tank diameter: 400mm
Max. Water yield: 2.3m³ /h /4m³ /h
Outside connection diameter: 1"
*180 multi-ports series
Max. Softener tank diameter: 750mm
Max. Water yield: Up mount 8m³ /h, Side mount 13m³ /h
Outside connection diameter: 1-1/2"
*172 multi-ports series
Max. Softener tank diameter: 1000mm
Max. Water yield: 26m³ /h
Outside connection diameter: 2"
*182 multi-ports series (only side mount)
Max. Softener tank diameter: 1200mm
Max. Water yield: 35m³ /h
Outside connection diameter: 2-1/2"
|
Model |
Specification |
Inlet / Outlet |
|
255/440I |
Time Softener |
3/4" NPT |
|
263/440I |
Time Softener Filter |
1" NPT |
|
268/440I. |
Time Softener |
1" NPT |
|
273/440I, |
Time Softener |
1" NPT |
|
172/440(Side Mount Adapter) |
Time Softener/ Filter |
1.5" NPT |
|
180/440(Side Mount Adapter) |
Time Softener/ Filter |
1.5" NPT |
