Awwa C509/515 Non-Rising Stem Gate Valve
| Price: |
US $ 30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
SUZHOU WALTER -FSV COMPANY SUPPLY KINDS OF RESILIENT SEATED GATE VALVES FOR WATER TREATMENT SYSTEM, FIRE-FIGHTING SYSTEM. WITH FULL BORE DESIGN, LOW HEAD LOSS, CLOCKWISE CLOSING DIRECTION OR NON-CLOCKWISE CLOSING DIRECTION IS OPTIONAL.

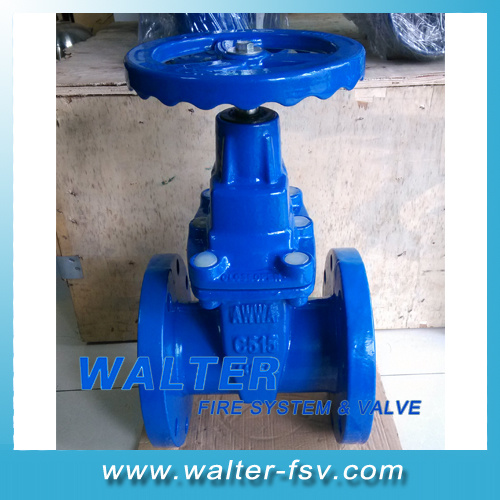

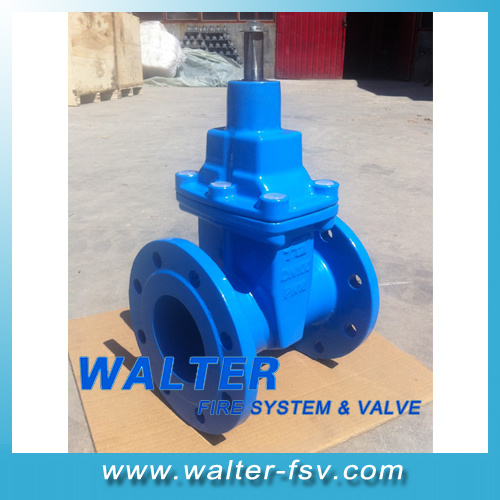

AWWA C509/515 Non-rising Stem Gate Valve
1) Design Standard: BS5163, DIN3352, AWWA C509/515 or Custom made
2) Face to Face: ANSI B16.10 ; Flanges to ASME B16.42
3) Pressure Testing: Body: 500PSI & Seat to 250PSI
4) Size Range: DN 50 - DN600
5) Body & Bonnet: GGG 50 ( EN-GJS 500 -7)
6) Wedge: GGG 50 + EPDM
7) Stem: SS420
8) Bolts: Stainless Steel or Carbon Steel
9) Surface: Epoxy Resin Coated inside & outside, Min. 250μ M
10) Stem cap, Position Indicator, Extension Spindle or T Key can be Optional
Beside Gate Valves, We also could supply OEM service for butterfly valve, check valve, strainer, hydraulic control valves.
| Prod Model: |
Z45X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Awwa Gate Valve |
| Connection: |
Flange ANSI |
| Body: |
Ductile Iron |
| Stem: |
S.S 420 |
| Seat: |
EPDM |
| Bolts: |
C.S or S.S |
| Size: |
2 - 12 Inch |
| Operator: |
Hand Wheel or Stem Cap |
| Pressure Rate: |
125psi/150psi/250psi |
| Surface: |
Epoxy Resin Coated |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
| Standard: |
Awwa |
Company Profile:
Suzhou Walter Flow Control Equipment Co., Ltd. Are a professional company specializing in fluid & firefighting equipment.
We do, and always will, fashion our long time business relationships from advanced technology, excellent quality and good service.
Walter Flow Control supplies products with FM, UL, CE and all other relevant certificates for use in Water Reticulation and Treatment Systems, Fire-fighting Projects, High Rise Buildings, the Oil, Gas and Chemical Industries etc.
Company Products:
Valves: Gate Valve, Butterfly Valve, Check Valve, Automatic Hydraulic Control Valve, Air Release Valve, Globe Valve, Ball Valve, Strainer, Pipeline products, etc.
Firefighting: Fire Sprinklers, Wet Alarm Check Valve, Deluge Valve, Water Flow Detector, Foam Extinguisher System, Gas Extinguisher System and Fire Hydrant System, Fire Hose, Fire Hose Reel, Fire Monitor, etc.
Standard & Certificates:
Walter products are design acc. To DIN, BS, ANSI, AWWA, EN, ISO, AS, API standard and relevant products can be provided with FM approval, UL listed, CE certificates.
Company Philosophy:
Processing every enquiry efficiently
Treating every order seriously
Serving every customer considerately
Choose us, reap success
