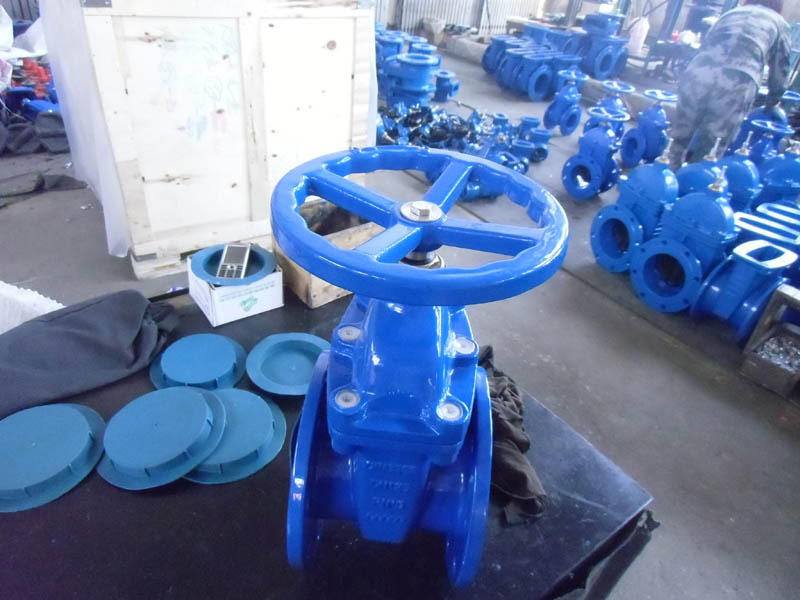

AWWA Resilient seated gate valves NRS Push on ends 200/250PSI
DESCRIPTION
1.Design confirms to: AWWA C509/C515
2.Push on ends:Fitted with NBR/EPDM Rubber seals to suit PVC-pipes
3.Test & Inspection: AWWA C509/C515
4.Suitable medium: water and neutral liquid
5.Working temperature: NBR≤80ºC, EPDM≤120ºC
6.Operator: handwheel, nut, extension stem, gear operator
MATERIAL LIST |
No. | PART | MATERIAL |
1 | BODY | DI ASTM A536 |
2 | WEDGE | DI A536/NBR/EPDM |
3 | STEM NUT | BRONZE C83600 |
4 | STEM | 420/304 |
5 | GLAND | DI A536/BRASS |
6 | HANDWHEEL | DI A536 |
DIMENSION(inch) |
DN | L | H | H1 | D | A |
2 | 10.24 | 12 | 2.56 | 2.44 | 3.43 |
2.5 | 10.75 | 12.4 | 2.95 | 2.99 | 3.54 |
3 | 12 | 13.62 | 3.15 | 3.58 | 3.74 |
4 | 13.78 | 15.55 | 3.54 | 4.65 | 4.21 |
6 | 16.85 | 20.47 | 4.53 | 6.77 | 5.7 |
8 | 18.5 | 22.24 | 6.1 | 8.74 | 6.57 |
10 | 21.25 | 25.5 | 7.3 | 11.06 | 6.7 |
12 | 26.45 | 29.5 | 8.3 | 13.2 | 9 |
Our valves range are as below
- Gate Valves, Check Valves, Globe Valves, Strainers, and Full ranges of Pipeline products & accessories
- DIN / BS / EN / API / ANSI / AWWA Standards available with different Material & Specs
- Competitive Price, Reliable Quality & On-time Delivery
Production Facility:
- Reliable Quality Assured by TUV
- Competitive Price by Strict Cost Control
- On-Time Delivery by All- Process Production Plan and Control
" Judibode regards quality as an essential and integral part of our business success. To meet this, we have achieved all types of world-known certificates. Manufacturing "Judibode" Brand products has evolved as a mark of quality and our products find warmacceptance in domestic as well as international market. "
Our Sluice Valve Factory:
Our company, Qingdao Judibode trading CO. Ltd. Is a large and professional manufacturing company.
Our main products are as below:
1; Universal couplings, universal flange adaptor, Gibault joint for PVC pipe, Quick flange adaptor for PVC/PE pipe, Saddle for PVC pipe, Universal saddle with SS band., Flange adaptor and coupling for PE/PVC pipe, dismantling joint, repair clamp, expansion joint etc. All of them are according to EN545/ISO2531 and PN10/PN16/PN25/PN40.
2; All kinds of valves, include gate valve, check valve, angle valve, air valve etc.
For surface treatment, beside Epoxy Resin power coated, Nylon coated also available.
3; Cast steel, Sand casting, Precision casting, Dewaxing casting.
The main products: Tractor Accessories, Rotavator accessories,
Excavator parts.
4; Our market: Europe(like AVK-Denmark, PAM-France), USA(Star-America), Middle-east(Amiantit-K. S. A), Africa and South-America.
5; Our capacity: 400tons/month.
