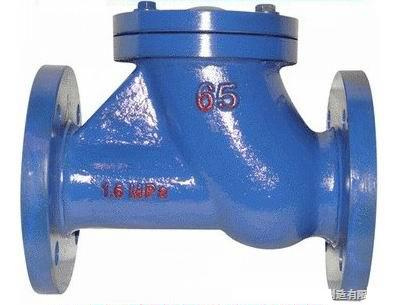

Sliding ball type check valves disc is a ball coated with rubber and dependent on the line
Pressure the ball can slide up and down in the integrated chute in the body to open or close the
Valves without any noise and water-hammering and good sealing capability
The bore is full without any block so the flow rate is much with little resisting force and little pressure loss and water-head loss is 50% of swing check valves
It can be installed vertically or horizontally and widely used in cold waters, hot waters, industry's and sewage pipeline and it is more for sewage submersible pump
Mail parts and materials:
Body: Cast iron and ductile cast iron
Bonnet: Cast iron and ductile cast iron
Ball: Cast steel coated with rubber
Technical specification:
Nominal pressures: 1.0 to 1.6mPa
Nominal diameters: 2 to 14 inches, 50 to 350mm
Medium: Water and weak corrosive fluid
Working temperatures: 0 to 80° C
Flanged end: GB/T17241.6 and GB9113
Inspection and test: GB/T 13927 and API 598
Shanghai Sunyea Valve Manufacture is established in 1997. Since the establishment, SUNYEA has witnessed a rapid development. In 2006, we built our own factory covering an area of 40, 000 square meters.
Being a professional manufacturer, SUNYEA integrateS R&D, production and marketing of various types of valves under one roof. SUNYEA can design and manufacture according to different international standards, such as API, JIS and DIN. To be well-equipped, SUNYEA has its own CAD valve design center, CIMS computer network management, technology consultant center and modern quality inspection center.
SUNYEA products mainly include gate valves, check valves, butterfly valves, ball valves, pressure-reducing valves etc. Presently, there are more than 50 product series and up to 1, 200 types of valves for you to choose from. These products are mainly applied in the petrochemical, power system and waste conservation industries. For many years, we have enjoyed a good reputation among customers, and won many honorary titles.
Our head office and factory are located in Songjiang Industrial Garden, Shanghai. We welcome your visit or contact us at your convenience.
