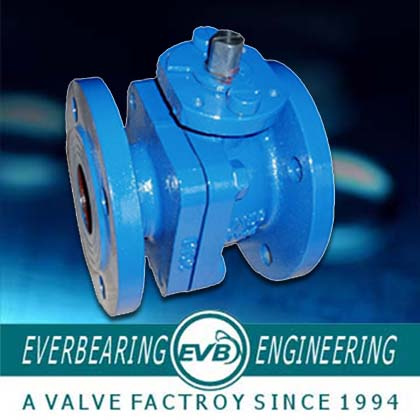

Ball valve
1. Material: A126B
2. Trade Term: FOB
3. Certification: ISO, CE, DQS
4. Pressure: 125LB
5. Ball valve, Factroy Price!
|
Specification |
|
Structre type: CAST IRON FLANGED BALL VALVE |
|
REDUCED PORT: HANDLE LEVER |
|
Face to face: ANSIN B16.10 CLASS 125 |
|
Test and Examination: API 598 |
|
|
|
Features: |
|
BLOW -OUT PROOF STAINLESS STEEL STEM |
|
FULL PORT 2" -12" (DN50 - DN300) |
|
SAFETY WORKING PRESSURE: 200PSI, 1.6MPa |
|
|
|
Materials |
|
NO. |
Part |
Material |
|
1 |
L-Body |
Cast lron A216B /ASTM A536 |
|
2 |
R-Body |
Cast lron A216B /ASTM A536 |
|
3 |
Ball |
SS304/CF8 |
|
4 |
Gasket |
PTFE |
|
5 |
Ball Seat |
PTFE |
|
6 |
Packing |
Graphite/PTEF |
|
7 |
Bolt and Nut |
A193 Gr B7/A194 Gr 2H |
|
8 |
Stem |
Stainless Steel |
|
9 |
Gland Bush |
Stainless Steel |
|
10 |
Thrust washer |
PTFE/NYLON |
|
11 |
Handle |
ASTM A536 |
|
|
|
Dimensions |
|
Size |
ID of valve |
Length |
OD of flange |
length of lever |
Height |
|
DN50 |
50 |
178 |
152 |
305 |
95 |
|
DN65 |
64 |
190 |
178 |
405 |
105 |
|
DN80 |
76 |
203 |
191 |
405 |
125 |
|
DN100 |
100 |
229 |
229 |
450 |
180 |
|
DN125 |
125 |
254 |
279 |
550 |
185 |
|
DN150 |
152 |
267 |
279 |
550 |
185 |
|
DN200 |
203 |
292 |
343 |
|
|
|
DN250 |
254 |
330 |
406 |
|
|
|
DN300 |
300 |
356 |
483 |
|
|
Everbearing Engineering Co., Ltd. is a manufacturer of various valves with well-equipped testing equipment and strong technical force.
Since 1994, We have passed API-Q1, and gotten the ISO 9001: 2000 certification. And after years of experience in supplying valves abroad, Everbearing has been recognized as a skilled and credible supplier with most-trusted, highest-quality products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water, oil, gas and other industries.
Sincerely, we hope to make Everbearing brand as a famous brand with domestic and international customers. And we do our best to improve Everbearing as a high-class valve manufacturer.
We are looking forward to establishing relationships with you in the near future.
