Bar Stock Ball Valve

Bar Stock Ball Valve
Price: US $ 3.7-3.9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T,D/P,Paypal

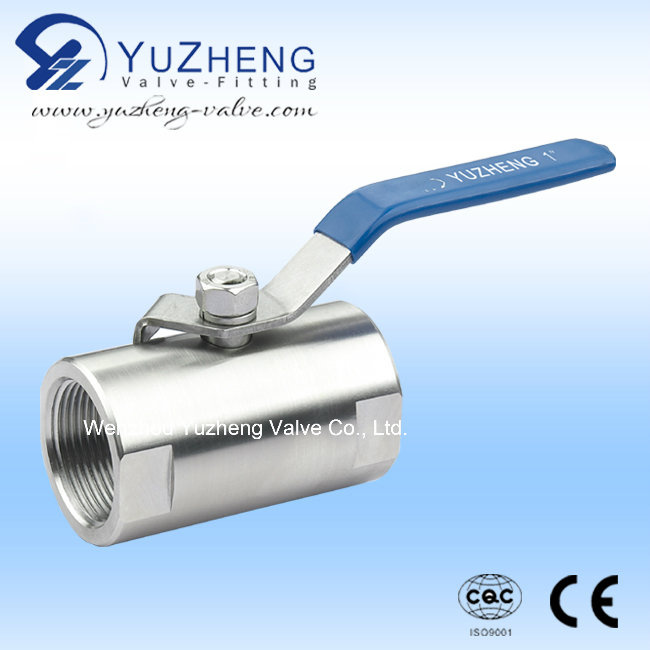

1 PC Bar Stock Ball Valve

Specifications
1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
2). Material: SS201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
4). Pressure: 1000WOG/1000PSI, 1.6-6.4MPa
5). Medium Temp.: -20° C~+150° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
8). Port: Reduced Bore
9). Handle: Lever Handle, Locking Device Handle Upon Request.
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Gas, Oil, Air and Some Corrosive Liquid

Features
1. Blow-out Proof Stem
2. Forged steel Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available

Other Information
For any valve inquiry, please specify the following infomation:
1. Valve type and design pressure/temperature
2. ANSI pressure class, Operating temperature, operating / differential pressure
3. Bore Size, pipe schedule ID / OD
4. Body and trim material
5. Medium, Flow rate Min. /Max.
6. Type of end connection
7. Actuation (manual, gear, actuator and type)
Prod Model: Q11F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thread: NPT, Bsp, BSPT, DIN259/2999
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.

The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.

Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
