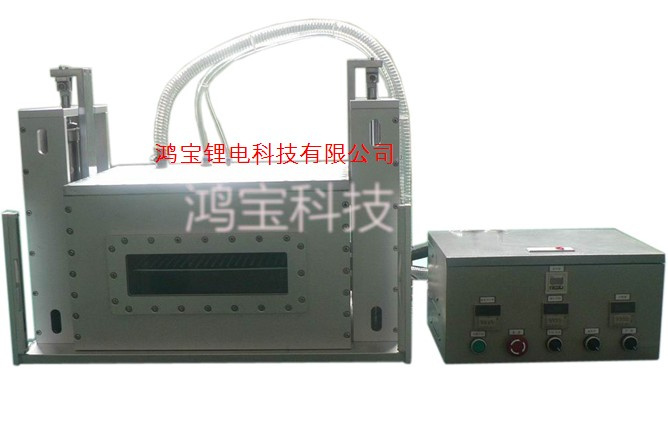

Functions: Used in penetrating the electrolyte into the battery core quickly and evenly by putting batteries in the vacuum condition.
Overall size(L*W*H): 730*480*1130mm
Weight: 87kg
Inside cavity specification: L*W*H 500*450*500
Vacuum range: -90〜 -97Kpa
The air cylinder drives the cylinder body high and low, which will facilitate feeding materials, and the observing window for momentarily observing the battery situation
Can be applied in the glove box or configured in the assembly line. Works
Automatically controlled by the imported PLC, freely setting up the settlement time together with its times.
Set up light curtain to keep safe.
Power supply: AC220V 0.2KW
Air source: 0.6〜 0.7Mpa 10 L/S
Inlet vacuum: -0.095Mpa 40L/S.
