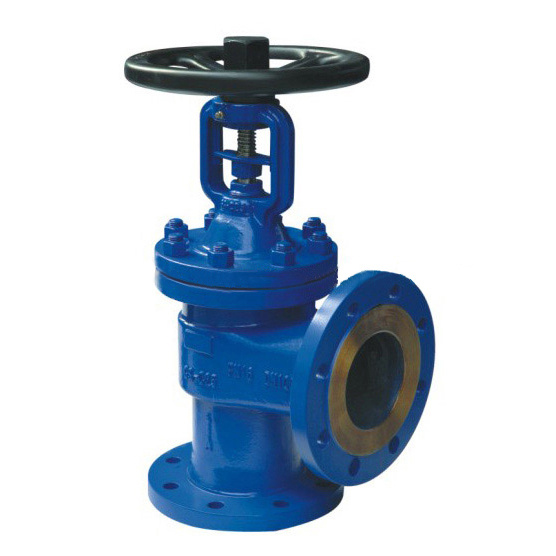

Bellows Seal Flanged Globe Valve

Bellows Seal Flanged Globe Valve
Price: US $ 70/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Bellows seal globe valve:
1)Standards:
A) Design&Manufacture: BS 1873, MSS SP-117
B) Face to Face: ASME B16.10, BS2080, DIN3202
C) Connection End: ASME B16.5, ASME B16.11, DIN2543-2551
D) Test and Inspection: ISO5208, EN12266
2) Sizes: 1/2" - 18" or DN12 - DN450
3) Pressure Rating: Class150 - Class1500 or PN16 - PN250
4) Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
5) Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric actuator.
Main part materials

NO.
Part nameMaterial
1BodyGS-C25,GGG-40,1.4401
2Seat1.4301,Stellite
3Disc1.4021,1.4401+ Stellite
4Pin1.4301,1.4401
5Bellow assemble1.4301,1.4401
6Stem1.4021,1.4301,1.4401
7GasketFlexible graphite + stainless steel
8CoverGS-C25,GGG-40,1.4401
9NutASTM 194-2H,A194-8
10Double-headed boltASTM 194-B7,A193-B8
11PackingFlexible graphite
12Gland1C25,1.4301,1.4401
13Locator1C25
14Stem nutCopper alloy,D2,BL2
15Hand wheelCarbon steel
16Cap1C45




Performance specification

Nominal Pressure
PN
Test PressureStrength test1.5PNMPa
Sealing test1.1PN
Gas seal test0.6
----
Suitable temp-196ºC~600ºC



Main connection size

PN 16
DNMain connection size
LDD1D2BFHN-Φd
151309565451621954-Φ14
2015010575581821954-Φ14
2516011585681822074-Φ14
32180140100781822184-Φ18
40200150110881832254-Φ18
502301651251022032304-Φ18
652901851451222032724-Φ18
803102001601382032908-Φ18
1003502201801582033558-Φ18
1254002502101882234108-Φ18
1504802852402122234258-Φ22
20060034029526824354012-Φ22
25073040535532026366512-Φ26
30085046041037828472012-Φ26
35098052047043830497016-Φ26
4001100580525490324105516-Φ30
PN 25
151309565451621954-Φ14
2015010575581821954-Φ14
2516011585681822074-Φ14
32180140100781822184-Φ18
40200150110881832254-Φ18
502301651251022032304-Φ18
652901851451222232728-Φ18
803102001601382432908-Φ18
1003502351901622433558-Φ22
1254002702201882634108-Φ26
1504803002502182834258-Φ26
20060036031027830354012-Φ26
25073042537033532366512-Φ30
30085048543039534472016-Φ30
35098055549045038497016-Φ33
4001100620550505404105516-Φ36
PN 40
151309565451621954-Φ14
2015010575581821954-Φ14
2516011585681822074-Φ14
32160140100681822184-Φ18
40180150110781832254-Φ18
502301651251022032304-Φ18
652901851451222232728-Φ18
803102001601382432908-Φ18
1003502351901622433558-Φ22
1254002702201882634108-Φ26
1504803002502182834258-Φ26
20060037532028534354012-Φ30
25073045038534538366512-Φ33
30085051545041042472016-Φ33
35098058051046546497016-Φ36
4001100660585535504105516-Φ39

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Through Way Globe Valve
Sealing Form: Bellows Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
