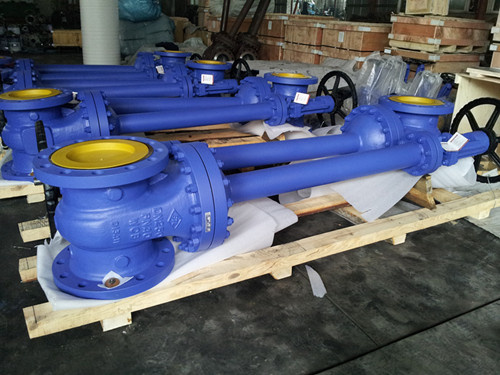

Bellows Seal Gate Valve in Flange End
| Price: |
US $ 50-8888/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

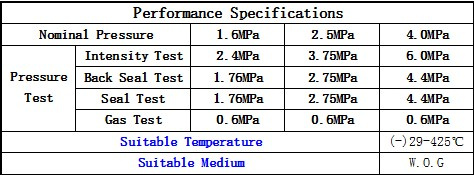

1.Technical Specifications:Size: 1/2" - 18" or DN12 - DN450 Pressure: Class150 - Class1500 or PN16 - PN250 Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc. Standards: Design&Manufacture: BS 1873, MSS SP-117 Face to Face/end to end: ASME B16.10, BS2080, DIN3202 Connection End: ASME B16.5, ASME B16.11, DIN2543-2551 Test and Inspection: ISO5208, EN12266 Construction: Outside screw and yoke (OS&Y) Body pattern: Straight, Y type, Angle type Bolted bonnet (B. B) Bellow seal Disc type: Plug, Flat, Needle, Regulating Rising stem and handwheel2.Performance Specifications:
3.Main Parts and Materials:
4.Main Sizes and Dimensions:
| Prod Model: |
WZ41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"--24" |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.
RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.
The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.
RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.
Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
