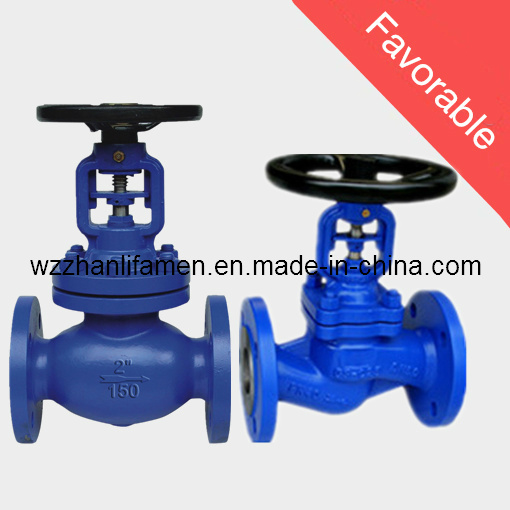

Bellows Sealed Globe Valve Wj41h (API, DIN, GB)

Bellows Sealed Globe Valve Wj41h (API, DIN, GB)
Price: US $ 999.99/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T
Bellows Seal Globe Valve is a new kind of globe valves with dual-seal. So its sealing is very good. The sealing surface is bead welding with hard alloy and the stem surface is in"nitrogen treatment". Hence it is the valve of attrition-resistant, good anti-corrosion performance and long service life.

Application: Petrochemical, Power Plant, Steel Mill, Plastic and Paper industries.

Belows are the details of Bellows Sealed Globe Valve made by our company:

Summarize
(1) Name: DIN Bellows Sealed Globe Valve
(2) Model: WJ41H/W
(3) Size Range: DN15 - DN600
(4) Pressure/Class: PN6 - PN100
(5) Materials: Cast Iron, Cast Steel, Stainless Steel etc.
(6) Connection Type: Thread, SW, BW, Flange etc.
(7) Suitable Tem.: -20º C - 425º C / -20º C - 550º C
(8) Standard: DIN, API, GB

Here we take DIN Bellows Sealed Globe Valve for example. For the others' data, please contact us.

1. Technical Specifications:
(1)Design Standard: DIN EN 13709-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003

2. Performance Specifications:


3. Main Parts and Materials:


4. Main Sizes and Dimensions:



If this product interests you, please feel free to contact with us!

Quality First Reputation Uppermost!
Prod Model: WJ41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Pressure: 1.6mpa, 2.5mpa.4.0mpa
Nominal Diameter: 1/2''-16''
Connection Type: Flange
Materials: Wcb, GS-C25
Structure: Through Way Globe Valve
Stem Thread Position: Inside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: DIN
Application: Bellows Globe Valve
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.

We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.

Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …

We purchased advanced machines & equipments, employed a qualified & skillful technical workers.

Welcome to inquire us. We will do our best to give you the best services!
