Bevel Gear Gate Valve (Z541H)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Bevel Gear Gate Valve:CLASS 600~2500 PRESSURE SEAL GATE VALVE
OS&Y, Rising stem, Flexible wedge
Pressure seat Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, API600, API6D, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D
A. Back up ring: Absors thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing
| Prod Model: |
Z541H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Cast Iron |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |

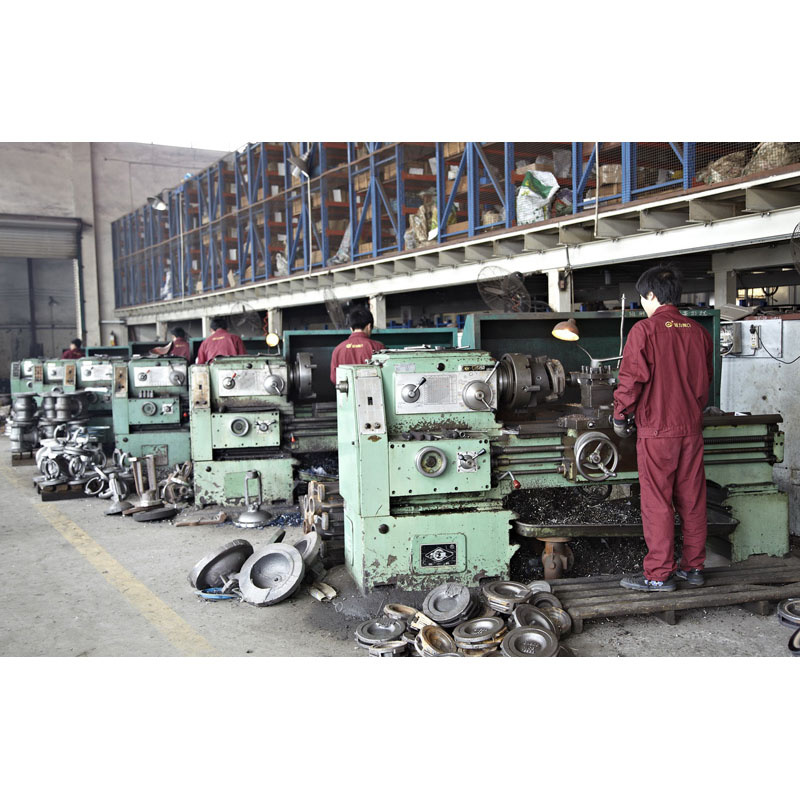

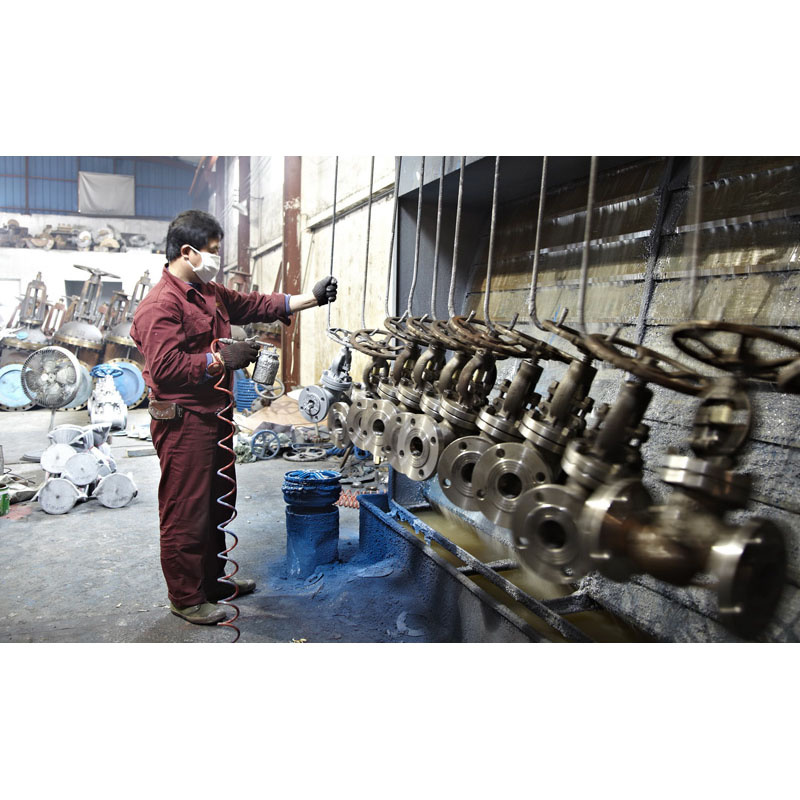

Established in 1992 and re-established in 2004, Zhejiang Guanli Valve Co., Ltd. Covers an area of 7, 500 square meters located at Dongou Industrial Zone in Wenzhou. Our company is located in Wenzhou, only 500 kilometers from Shanghai Pudong Airport.
We are a professional manufacturer of industry valves according to API, DIN, JIS standards. Our products include knife gate valves, ball valves, gate valves, globe valves, check valves and butterfly valves. Our valves are made with materials of WCB, WC6, WC9, LCB, 304, 316, 304L, 316L and F51. They are widely used in many fields, such as petroleum, chemical, natural gas, power, feed water, steel and metallurgy.
If you are interested in any of our products, please feel free to contact us for more information.
