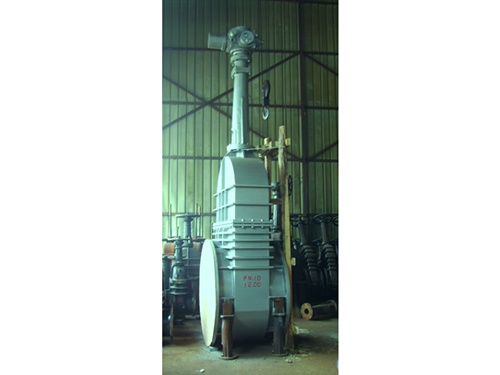

Big Gate Valve (Z41H)

Big Gate Valve (Z41H)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Applicable/Product Standards:
Steel Gate Valves Design: API 600 / API 6D / BS1414
Steel Gate Valves: ISO 10434 / ISO 14313
Steel Valves: ASME B16.34
Face to Face according to: ASME B16.10
Flanges Ends according to: ASME B16.5
Butt Welding Ends according to: ASME B16.25
Inspection and Testing according to: API 598 / API 6D
Design/Production Description:
· Meet design requirements of ANSI B16.5, B16.34, B16.10, BS1414
B16.25 (for NPS≤ 24), MSS SP-44(for NPS>24), API-600 or API 6D
· Inspection and Test: Accord with API 598
· Full range of body/bonnet & trim materials
· Choice of solid, flexible or split wedge design
· Back seating design
· Upset forged T-head stem design
· OS&Y construction
· Renewable seat rings--seal welded
· Full port design
· Full length wedge guides
· Optional impact hand wheel
· Optional lengthen stem

KST-Techv Gate Valve Feature:
Full Port Design
OS&Y, Outside Screw and Yoke
BB, Bolted Bonnet
PSB, Pressure Seal Bonnet
Flexible Wedge, Fully Guided
Choice of Solid or Split Wedge
Size: 2"-48"
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Or PN6, PN10. PN16. PN25, PN40. PN64. PN100, PN160, PN200
Connection: Flanges, RTJ Flange, Butt Weld, Groove
Material:
Carbon Steel, Forged Steel, Stainless Steel: WCB, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator.
Prod Model: Z41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Material: Stainless Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Water Industrial Usage
KST Technology Development limited, a valve manufacturer, located at China famous Pump&Valve Town_Oubei, WenZhou, Our factory specialized in all kinds of industrial valve, which according to API, ASME, EN, ISO, JIS, BS, GOST&GB standards, The product includes Gate valves, ball valves, check valves, Globe valves, Plug valve, Butterfly valves, safety valves, Strainer, and other special valves that are applied broadly in petroleum, chemical, metallurgical and power station industries. And according to the customer's requirements of various types of special standards to design and product.

Of course, our factory consistent confirmed international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, southeast Asia, Product quality and service reliability are essential to the success of our business, we strictly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customers fully satisfaction.

Valve products details:
Products range: gate valve, check valve, globe valve, check valve, ball valves, and butterfly valves, strainers etc.

Pressure range: Class 150~Class 2500; 1.0MPa~42.0 MPa
Size range: NPS1/2"~NPS48" DN15~DN1200
Temperature: -196~649 (-320~1200)
Connection End: RF, BW, SW, NPT, Wafer type etc.

Materials(Casting): WCB, WCC, LCB, LCC, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC6, WC5, WC9, GR4A. etc
Materials(forging): A105, LF1, LF2, F11, F22, F5, F304L, F316, F316L, F316H, F321, F51. etc
According to the different project and different medium, we effectively meet customer's requirments with RT, UT, MT, PT test standard, the remarkable quality and service are the KST-Techv person's forever pursue
