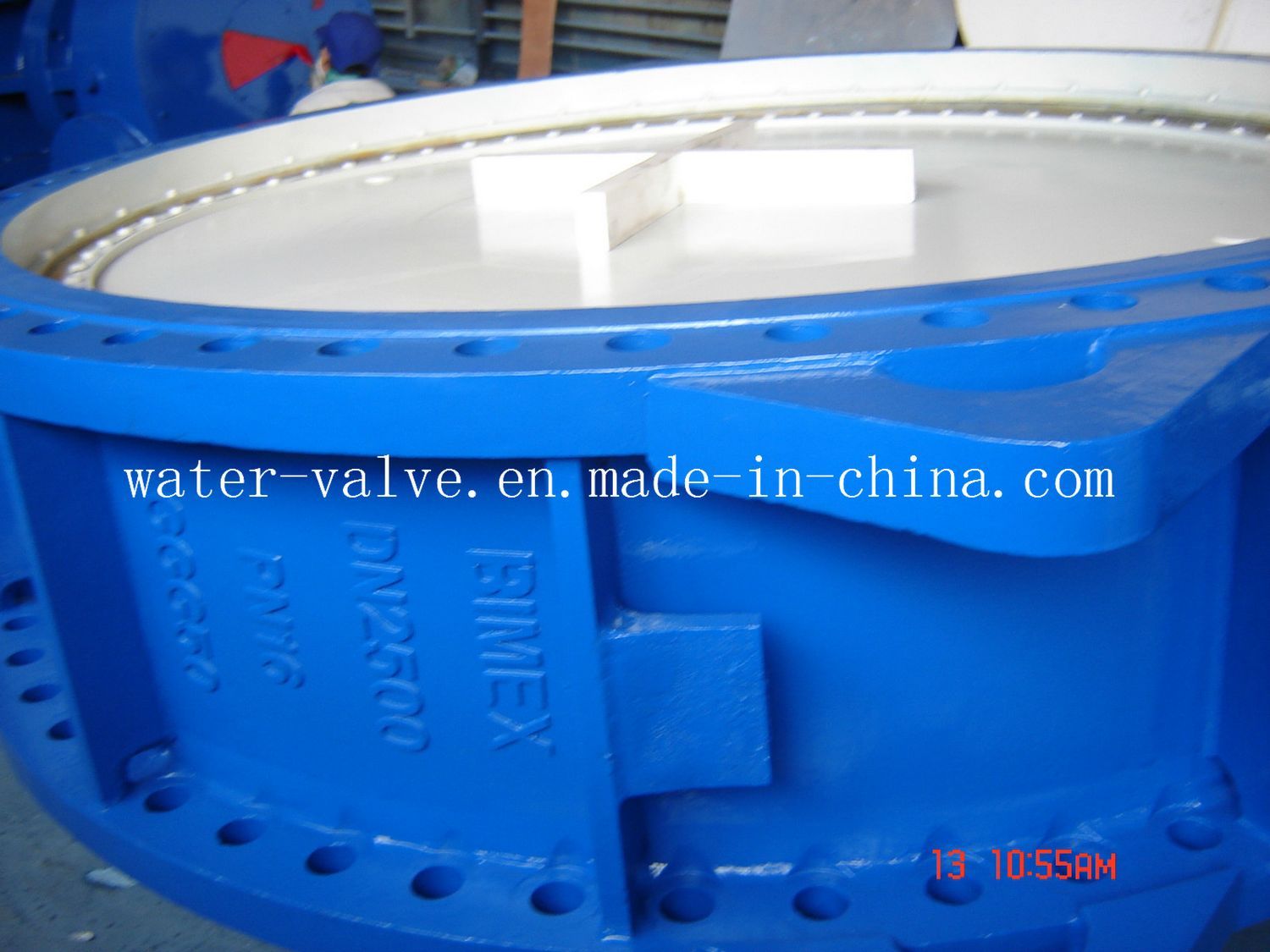

Big Size Electric Flange Butterfly Valve
| Price: |
US $ 36897/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Teiling Water Valve company is the largest low pressure big diameter valve, penstock manufacturing base. The main products: Butterfly valve, gate valve, check valve, air release valve, rotating strainer, steel penstock, cool and hot isolating gate valve, guarding gate, inserting gate valve; Strict quality control, competitive price, and good service help sell well in overseas market. Such as u. S. A, Australia, Britain, Italy, Malaysia, Saudi Arabia, United Arab Emirates, Egypt, etc.
Product feature
series of butterfly valves are suitable to be used for industrial pipeline as two-way open-closing and regulating devices.The scope of regulation is from 4o°to 90°fully open.If the valve is one-way used,the recommended pressure direction of closing is shown on fig.
1. The disk is truss framed with two-plate and flow-resistent is lower.
2. It has reliable sealing structure for two-way stopping without any leakage.
3. The axle sleeves are self-lubricanted bearing. Oiling is not need and friction drag is small during operation.
4. Rubber sealing can be replaced on pipeline without removing the valve (DN>700).
5. Several kinds of actuators with reliable performance and agile operation are supplied for the liser's selection. Wear-resisting and corrosion-resisting.
Butterfly Valve Specification:
Body/Disc: Ductile iron BS EN 1563 EN-GJS-400-15
Body Seat: Stainless Steel BS EN 10088 Grade 1.4057 (431)
Disc Seat: EPDM
Shaft: Stainless Steel BS EN 10088 Grade 1.4057 (431)
Flange standard: GB4216.3-84,BS4504,ANSI B16.1
Face to face: GB12221-89 series 13,BS5155,ANSI B16.10
Pressure test: GB/T 13927-92 Grade A(or on request)
Leakage: No visible detectable leakage| Main material | grey cast iron, ductile cast
iron, alloy cast iron, carbon steel |
| Suitable temprature: | ≤ 80 |
| Nominal pressure | PN2.5-25bar |
| Nominal diameter | DN250-2800mm |
| Flange dimension | BS4504 ISO2531, ISO7005
and other standards conforming to the requirements |
| Face to Face length | BS5155, ISO5752, DIN3352, AWWAC504 and other standards conforming to the requirements |
MATERIALS OF MAIN PARTS
Name of parts |
Material of parts |
Body disc |
Cast iron/ductile iron/carbon steel |
Shaft |
Stainless steel |
Body sealing ring |
Stainless steel |
Disc sealing ring |
Rubber/stainless steel |
| Prod Model: |
D942 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Large Diameter Valve: |
to Be Dn4000mm |
| The Material: |
Ggg50 |
| Connection Form: |
Flange |
| Structure: |
Double-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Low Temperature (',-100??C
|
| Material Of Seal Surface: |
Metal Hard Sealed |
| Application: |
Water Industrial Usage |
Tieling Water Valve Co., Ltd. is one of the key enterprises after the former Tieling Valve Works was reformed. It is the largest low pressure big diameter valve, penstock manufacturing base. It has a history of more than 70 years, it is named as advanced new and high-tech enterprise.
The registered capital is 65 million. We have 180 staff which include 2 senior professional title technicians; 15 middle professional title technicians; 40% of the staff graduated from the college. Our company occupies an area of 18558 m2 and a building area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machine, planning machine, universal tool grinding machine, plate bending area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machinerolls. There are more than 80 machining equipments and cranes of 32/5 T, 20T and 5T. We can produce gray cast iron, ductile iron, low alloy iron valves, steel penstock, cleaning machine, different kind of wind gates, strainers, and pipe fittings and valve actuators. The annual capacity (production value) is RMB 50 million.
The main products: Butterfly valve, gate valve, check valves, air release valve, rotating strainer, comb type cleaning machine, grating, steel penstock, cool and hot isolating gate, guarding gate, regulating shrinkage hole, inserting gate; The suitable medium: Clean water, sewage water, sea water, air, high temperature stove air, gas, steam and different acid and alkali liquid; Suitable temperature: -40º C to 600º C; Suitable pressure: 0.01MPa~2.5MPa; Nominal diameter: DN50-DN3000, actuating methods: Manual, motor, pneumatic, hydraulic, motor& hydraulic. According to the customer' S requirements we can design and manufacture the products conforming to GB, JB, ISO, DIN, BS, API, ANSI. The products are widely used in water power plant, thermal power plant, water plant(city water supplying and distributing), sewage treatment plant, gas, airline, metallic, petroleum and chemical, mine, water power.
Our products have been applied in many projects such as: Beijingyanshang Petroleum &Chemical, Yuanbaoshan Power Plant, Tangshansanyou Thermal Power plant Co., Ltd., Fuxin Power Plant, Anhuipingwei Power Plant, Guodian Puyang Thermal Power Plant Co., Ltd., Jilin Songyuan Oil Refining Plant, Jinxi Petroleum & Chemical Co., Ltd., Jinzhou Power Plant, Guangdong Liede Water Plant. Our company has the right of importing&exporting, some of the products have been exported to USA, Canada, England, Turkey, Spain, Pakistan, Iran, Iraq, Singapore, Thailand, Malaysia, Cambodia, Syria. South Africa, Nigeria, Egypt, Tanzania and other countries.
We have gained the belief and good evaluation from the foreign and domestic customers for our Good product quality and perfect after sale service.
Sincerely welcome the domestic and foreign clients to our company for visiting and negotiation. We will provide you with best products and perfect service.
Our quality policy: Customer is the center, pursuit excellence; Quality first, credibility supreme.
