Design Standards
1. Design and Manufacture as per: API6D ASME B16.34
2. Structural Length as per: API6D ASME16.10
3. Welded Ends: ASME B16.25
4. Test and Inspection as per: API6D API598
Structural Features:
1. Anti Static
2. Anti Blow-out Stem
3. Auxiliary Sealing Construction
4. Locking Device Available
5. Fire Safe API 607- 6FA.
6. Double block & bleed.
7. Emergency grease injection
8. Double seal for body

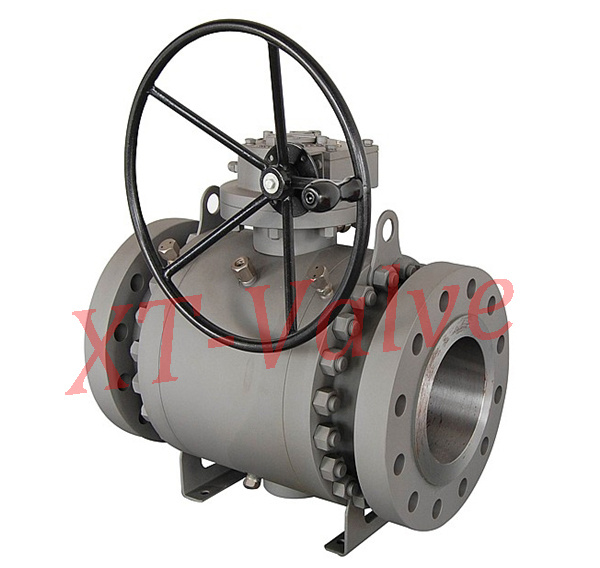

Metal Seated Ball Valves features:
1. Metal to metal seated
2. Cavity pressure
3. Fire safe design
4. Anti Blow-out stem
5. Anti-static device
6. Locking Device
7. ISO 5211 mounting pad design
8. Gear/Actuator device
9. Metal-seated for severe conditions such as higher temperature, high pressure, and abrasive services in fields of Oil & Gas, Petroleum, Petrochemical, Chemical, Power Generation, Pulp & Paper, Mining industries
10. Trunnion ball design keeps the seats touch ball tightly to remain stable and lower torque.
Metal seated ball valves are required for many extreme service conditions involving abrasives, corrosives, high cycle rates or extreme temperature and pressure. These conditions require simple, well built but rugged designs, metal seats, rigorous testing and carefully chosen materials.
|
DESGN & MFT. |
API |
ENDS CONNECTION |
RF |
|
PRE-TEP. RATING |
ANSI B16.34 |
INSPECT & TEST |
API 598 |
|
F-F DIMENSION |
ANSI B16.10 |
END CONNECTION |
ASME B16.5 |
|
MARKING |
MSS SP-25 |
FIRE SAFE DESIGN |
API 6FA |
|
PAITING |
MFTR STD |
SPE. REQUIREMENTS |
N.A |
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
