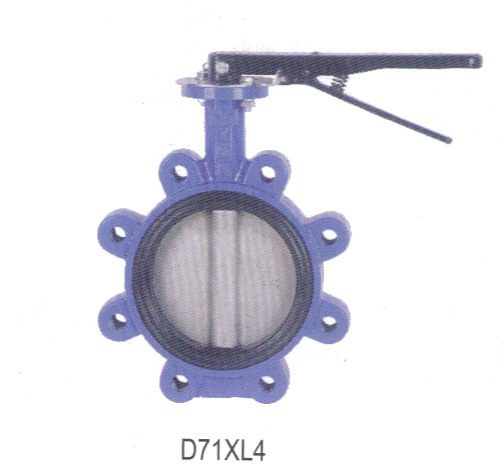

GB/T12238-2008 RESILIENT CENTERLINE WAFER BUTTERFLY VALVE , PN16- LEVER TYPE
| DN | Dimensions(mm) |
| lnch | mm | A | B | C | D | D1 | V | Φ2 | N-Φ | G | L | ISO5211 |
| 1.5" | 40 | 138 | 64.5 | 33 | 43.9 | 110 | 32 | 12.6 | 4-Φ19 | 9.45 | 267 | F07 |
| 2" | 50 | 140.5 | 64.5 | 43 | 53.9 | 125 | 32 | 14 | 4-Φ19 | 9.53 | 267 | F07 |
| 2.5" | 65 | 153 | 72 | 46 | 65.2 | 145 | 32 | 14 | 4-Φ19 | 9.53 | 267 | F07 |
| 3" | 80 | 157.5 | 86 | 46 | 79.7 | 160 | 32 | 14 | 8-Φ19 | 9.53 | 267 | F07 |
| 4" | 100 | 176 | 100 | 52 | 105 | 180 | 32 | 16 | 8-Φ19 | 11.14 | 267 | F07 |
| 5" | 125 | 191 | 112 | 56 | 130 | 210 | 32 | 16 | 8-Φ19 | 11.14 | 267 | F07 |
| 6" | 150 | 202.5 | 128 | 56 | 156 | 240 | 32 | 20 | 8-Φ23 | 12.7 | 267 | F07 |
| 8" | 200 | 243.5 | 162 | 60 | 206.7 | 295 | 45 | 26 | 12-Φ23 | 20.6 | 356 | F10 |
| 10" | 250 | 273 | 194 | 68 | 253.3 | 355 | 45 | 26 | 12-Φ28 | 20.6 | 356 | F10 |
| 12" | 300 | 311 | 223 | 78 | 301.9 | 410 | 45 | 28 | 12-Φ28 | 22.1 | 490 | F10 |
| 14" | 350 | 340 | 267 | 78 | 333.9 | 470 | 45 | 31.6 | 16-Φ28 | 22.1 |
| F12 |
| 16" | 400 | 400 | 300 | 102 | 389.6 | 525 | 48 | 33.2 | 16-Φ31 | 27 |
| F14 |
