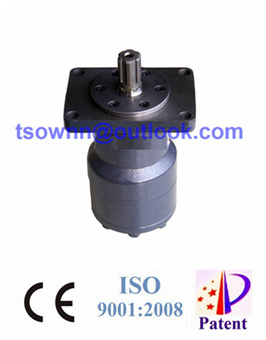

BM2 Series Orbital Hydraulic Motor Spool Valve

Tsownn made-in-China products, a famous manufacturer of low speed, high torque orbit motor in China. We do quality products, which are CE and ISO9001: 2008 certified, with cheap price. The orbit motors have 10 series, including BM1 series (same as OMP of Sauer Danfoss, JH of EATON CHARLYNN, OMP of PARKER, WG of WHITE, MP/MLHP of M+S, BG/BH of SAM), BM2 series (same as OMR of Sauer Danfoss, JS of EATON CHARLYNN, TC/TB/TE/TH of PARKER, WR/RS of WHITE, MR/MLHR of M+S, BR/BS/AR of SAM), BM3 series (same as OMH of Sauer Danfoss, BM4 of EATON CHARLYNN), BM4 series (same as TF/TL/TG of PARKER, DR/RE/CE of WHITE, MH/MLHH of M+S), BM5 series (same as OMS of Sauer Danfoss, 2K/J2K of EATON CHARLYNN, OMS of PARKER, HB/WS of WHITE, MS/MLHS of M+S, HR of SAM), BM6 series (same as OMT/OMV of Sauer Danfoss, 6K/J6K of EATON CHARLYNN, OMT of PARKER, D9 of WHITE, MT/MLHT/MV/MLHV of M+S, HT of SAM). 8K series, double shafts orbit motor, rotary orbit motor, braking orbit motor. Please connect sarah wang to get a big discount.
Our monthly productivity is almost 5000 pcs, and 40% of them are sold to Chinese trading companies for exporting to some places all over the world, such as Turkey, Lybia, Italy, India, etc. And gained a good reputation for high quality and good service.
BM2 series orbital hydraulic motor is a small motor of low speed, high torque, with a stator-rotor package in toothed shape.
Advantage:
1. Small, lightweight, smaller than other orbit motor of same torque
2. Wide speed range, non-grade adjustment of speed, minimum steady speed is 15rpm, easy and convenient to be equipped with, low cost
3. Used in series and in parallel way of a hydraulic system
4. Small rotary inertia, easy to be started, rotate clockwise and counterclockwise, no need stopping rotating when change direction
Main function features:
1. Shaft groove distributes flow, simple and compact structure, high accuracy of flow distributing
2. Stator-rotor in toothed shape, high mechanical efficiency, longer working lifetime under high pressure
3. Touching-ball bearing of coupled-angle, bear higher loading in both radial and axial direction, small friction force, high mechanical efficiency
BM2 series main performance specification

TYPE	DISPLACEMENT			PRESSURE		FLOW	TORQUE	SPEED
	cc/r	cm³/rev.	ml/rev.	bar	mPa	(lnt./min) LPM	n*m	rpm
BM1-50	50	50	50	140	14	45	86	858
BM1-63	63	63	63	140	14	53	98	775
BM1-80	80	80	80	140	14	69	141	820
BM1-100	100	100	100	140	14	69	176	671
BM1-125	125	125	125	140	14	69	221	548
BM1-160	160	160	160	125	12.5	69	260	426
BM1-200	200	200	200	125	12.5	69	318	341
BM1-250	250	250	250	125	12.5	69	383	282
BM1-315	315	315	315	125	12.5	69	406	210
BM1-400	400	400	400	110	11	69	521	173
BM2-50	50	50	50	170	17	46	108	863
BM2-63	63	63	63	170	17	58	136	832
BM2-80	80	80	80	170	17	68	172	766
BM2-100	100	100	100	170	17	68	216	646
BM2-125	125	125	125	170	17	68	270	516
BM2-160	160	160	160	170	17	68	346	404
BM2-200	200	200	200	150	15	68	382	323
BM2-250	250	250	250	130	13	68	413	258
BM2-315	315	315	315	110	11	68	400	205
BM2-400	400	400	400	100	10	68	464	162
BM2-500	500	500	500	90	9	68	500	128
BM3-100	100	100	100	160	16	60	216	540
BM3-160	160	160	160	140	14	60	306	337
BM3-200	200	200	200	140	14	60	357	272
BM3-250	250	250	250	130	13	60	424	216
BM3-315	315	315	315	130	13	60	540	177
BM3-400	400	400	400	125	12.5	60	660	142
BM4-245	245	245	245	150	15	100	502	390
BM4-310	310	310	310	150	15	100	664	300
BM4-400	400	400	400	150	15	100	798	240
BM4-500	500	500	500	150	15	100	1058	200
BM4-630	630	630	630	130	13	100	1178	150
BM4-800	800	800	800	120	12	100	1380	120
BM5-80	80	80	80	280	28	85	285	956
BM5-100	100	100	100	280	28	95	356	855
BM5-125	125	125	125	280	28	95	445	700
BM5-160	160	160	160	250	25	115	509	660
BM5-195	195	195	195	250	25	115	636	529
BM5-245	245	245	245	250	25	115	755	423
BM5-305	305	305	305	210	21	115	763	347
BM5-395	395	395	395	175	17.5	130	640	308
BM5-500	500	500	500	150	15	130	860	246
BM6-195	195	195	195	310	31	170	852	865
BM6-245	245	245	245	310	31	210	1176	836
BM6-310	310	310	310	310	31	225	1356	699
BM6-390	390	390	390	310	31	225	1633	572
BM6-490	490	490	490	275	27.5	225	1878	453
BM6-625	625	625	625	170	17	225	1368	354
BM6-800	800	800	800	140	14	225	1645	275
BM6-985	985	985	985	140	14	225	1877	230
8K-310	310	310	310	310	31	225	1356	699
8K-390	390	390	390	310	31	225	1633	572
8K-500	500	500	500	240	24	225	1685	454
8K-630	630	630	630	250	25	225	2217	355
8K-800	800	800	800	250	25	225	2800	400
8K-1000	1000	1000	1000	250	25	340	3200	350
8K-1250	1250	1250	1250	250	25	400	4400	320
8K-1600	1600	1600	1600	250	25	400	5500	250
