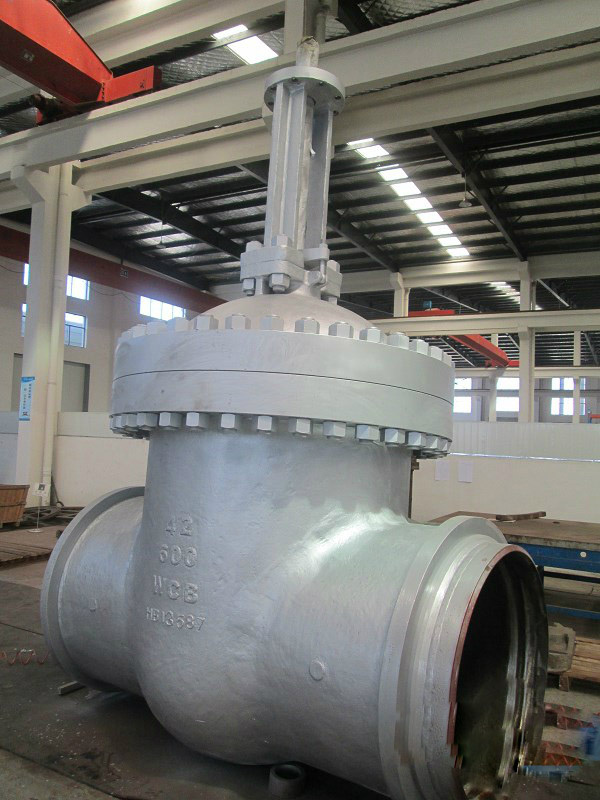

API 600 Cast Gate Valves are with Features and Specifications as below:
Design & Manufacture: ANSI B16.5, B16.34, API 600
OS&Y, Bolted Bonnet
Solid, Flexible or Split Wedge Design
Back-seating, Renewable Seat Ring
Full Port Or Reduced Bore
Optional Upset forged T-head Stem Design
Size Range: 2" to 50"N. B.
Pressure Ratings: ANSI 150, 300, 600, 900
End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors,
Compact Flange or other proprietary connections.
Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
Various trim materials are available to suit different service conditions
Actuations: Manual, Electric, Hydrau-Pneumatic Actuator
To MR 0175 and MR 103 on request
CERTIFICATES
API
TUV CE
ISO
DESIGN & MFT. | API 600 | ENDS CONNECTION | RF |
| PRE. TEP. RATING | ASME B16.34 | TEST & INSPECT | API 598 |
| F-F DIMENSION | ANSI B 16.10 | FLANGE DIMENSION | ASME B16.5 |
| MARKING | MSS-SP-25 | FIRE SAFE DESIGN | API 607 |
| PAINTING | TBA | SPE. REQUIREMENTS | N.A |
Main Part & Materials |
|
|
|
|
|
|
|
|
| Part Names | Part Materials |
| Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Stem | F6a | F304 | F6a | F304 | F316 | F304L | F316L | C83600/C95800 |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
| Packing | Graphite/PTFE |
| Gasket | SS304+Graphite/SS304+Graphite |
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. |
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C
|
We belong to Wuhan Hande Valve & Instrument Co., Ltd branch of the company. It is located in Wuhan, Hubei Province, China. All the names in our certificates are our head quarter which is Wuhan Hande Valve & Instrument Co., Ltd. Our company is chagring of international markets and business.
SHENHAO VALVE Co., Ltd. Has been developed into a large-scale hi-tech enterprise integrating research, development, production and distribution through over twenty years of operation.
We are located in Oubei Town, Zhejiang Province, China, which is typically known as the "Pump Valve Town of China". Integrating with design & development, manufacturing and marketing, SHENHAO Valve Co., Ltd. is Chinese leading Valve Manufacturer, Supplier & Exporter. It has more than 260 staffs, of which 50 are professional technicians. SHENHAO has two main manufacturing bases which covers an land area of 20000 m2 with building area of 12000 m2. SHENHAO is the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
We hold the principle of "mutual benefit and win-win result" to cooperate with importers. We have exported valves to Spain, Italy, Pakaistan, Turkey and India. Our products are famous of its good quality and favorable price.
We shall try our best to satisfied all the requirements from our customers. We try to do "Zero Explain". Fortunately, we have done it succesfully. Choose us to be one of your suppliers, which your correct choice!
We are looking forward to work with you!
