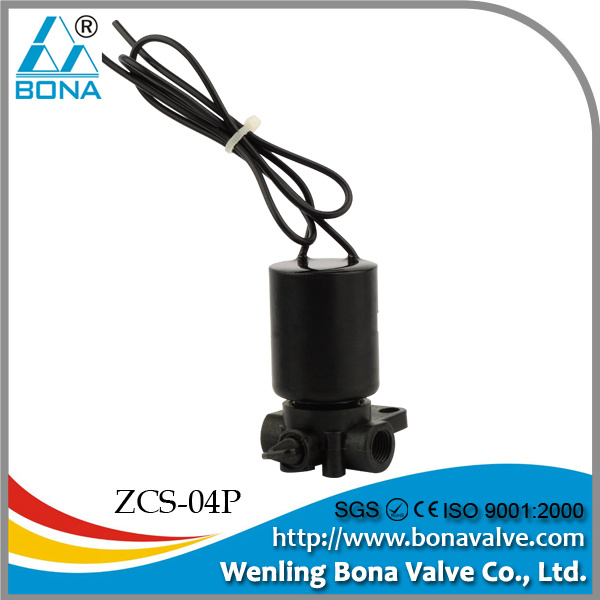

Mini solenoid valve, connection of 1/8", mainly used in irrigation, landscape, gardening areas, with a manual set.
Name:
Irrigation solenoid valve, normally close solenoid valve, liquid solenoid valve, water solenoid valve, nylon solenoid valve
1. Description
Specification:
1)Working Media: Water, Liquid
2)Motion Pattern: Direct Acting Type
3)Type: Normal Close Type
4)Joint Pipe Bore: Female 1/8"
5)Working pressure: 0-10bar
6)Max. Pressure Resistance: 10bar
7)Operating Temperature: 80 degree C
8)Voltage Range: 10%
9)Material of Body: Nylon Reinforced
10)Material of Seal Ring: NBR
| Port size: | Female G 1/8" (NPT upon request) |
| Port NO.: | 2/2 way |
| Shutoff state: | Normally close |
| Media: | Water; liquid in general |
| Type: | Direct acting |
| Max valve pressure: | 10bar |
| Body material: | Nylon reinforced |
| Seal ring material: | NBR |
| Max media temperature: | 80 degree C |
Additional function:
|
Manual set
|
| Voltage available: | DC 12V; DC 24V; 12V/50; 24V/50; 110V/50; 220V/230V/50; Pulse 6-24VDC |
| Protection class: | IP 65 |
2. Our service
We have more than 13 years experience in solenoid valves.
Excellent quality control is one of our main principles.
Our design, producing and testing are strictly complied with ISO9001 standard.
Now our products are being exported all over the world.
We provide OEM service, accept customer label, develop the product with your drawings or samples.
Any question, will be replyed within 24 hours.
Direct supplying from the factory, shorten the distance between the manufacturer and the customer.
3. Other terms
1) About Samples
We provide samples for your making test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery. Tracking number will be informed you ASAP.
2) About Packing
Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets
3) Terms of payment:
We accept T/T, L/C, Western union, Papal
4)Terms of Shipment:
About 20-25days after receiving deposit.
5)Ports of shipment:
Ningbo/Shanghai Port, by sea or air.
6)Gurantee:
One year since delivery.
7)Inspection:
100% testing before delivery.
Welcome to choose our products, we are ready for you!
We have many years professional manufacture experience in designing and producing solenoid valves, other fluid control products and their components. Now we have several patents. Our product passed CE of TUV, SGS.
Our main product are solenoid valves for water, solenoid valves for steam, solenoid valve for air, stainless steel float ball switch and other brass products. Widely be used in automatic application of welding, irrigation, ironing, food process, inductive sanitary, water auto supply, home appliance industry.
Quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are exported all over the world.
Welcome to choose our varied products. We have powerful technical support, steady quality and good service. We'd very like to have cooperation with you in a long term relationship.
