compressor parts
timer auto drain valve(ZCS-720) + strainer (AF-01)
timer auto drain valve(ZCS-721) + strainer (AF-01)

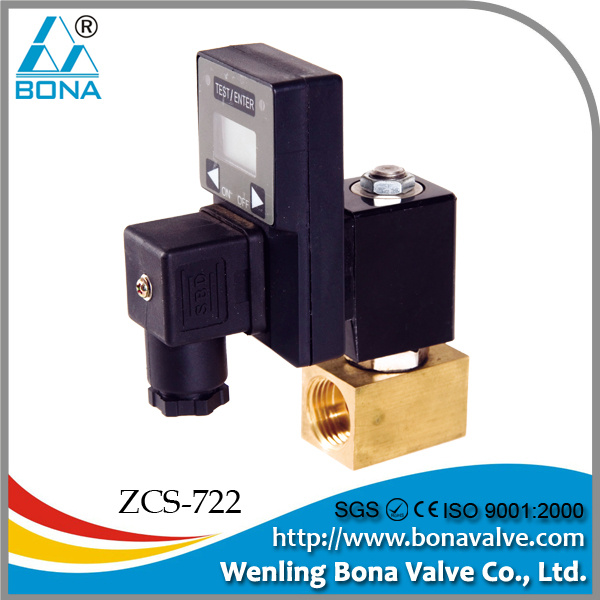

timer auto drain valve(ZCS-722) + strainer (AF-01)
Motion
2/2 way , direct action, Normally Closed
Max Working Pressure
16Bar
Medium
Water
Working Voltage
on request, such as AC 220V, AC 110V...
Port Size
female 1/4,3/8,1/2
Body Material
brass
Sealing Material
NBR, etc
Temperature
90deg C
Protection Class
IP65
ED
100%
Certificate
ISO9001/2000
Orifice
4mm
Interval: (OFF)
0.5~45minutes
Drain time:(ON)
0.5~10seconds
Normally close,it can be preset open and close time,with hand test button,easy install,small shape,high reliability,design for use with air purifying,air station,water auto-supply and irrigation in general.
Port Size: |
Female G1/4" or 1/2" |
Body material: |
Brass |
Seal ring material: |
NBR |
Max Media Temperature: |
80ºC |
Max Operation Pressure |
0-16 bar |
Open time |
0.5-10 secs |
Close time |
0.5-45 mins |
Voltage available: |
AC 24V ; AC 110V ; AC220V/230V ; DC12V ; DC24V
|
Three different type timers for your choice;
The strainer (ball valve) is optional;
The electronic drain valve is made up of electronic timer and solenoid valve, which can make the compressor condenstates water drain automatically;
It is widely used in air compressor, filer drier, oil/water segregator, refrigerant compressed , air drying machine, air compressor drip feet, and so on;
The timer of drain and interval can be adjustable according to different needs
2. Our service
We have more than 13 years experience in solenoid valves.
Excellent quality control is one of our main principles.
Our design, producing and testing are strictly complied with ISO9001 standard.
Now our products are being exported all over the world.
We provide OEM service, accept customer label, develop the product with your drawings or samples.
Any question, will be replyed within 24 hours.
Direct supplying from the factory, shorten the distance between the manufacturer and the customer.
3. Other terms
1) About Samples
We provide samples for your making test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery. Tracking number will be informed you ASAP.
2) About Packing
Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets
3) Terms of payment:
We accept T/T, L/C, Western union, Papal
4)Terms of Shipment:
About 20-25days after receiving deposit.
5)Ports of shipment:
Ningbo/Shanghai Port, by sea or air.
6)Gurantee:
One year since delivery.
7)Inspection:
100% testing before delivery.
Welcome to choose our products, we are ready for you!
We have many years professional manufacture experience in designing and producing solenoid valves, other fluid control products and their components. Now we have several patents. Our product passed CE of TUV, SGS.
Our main product are solenoid valves for water, solenoid valves for steam, solenoid valve for air, stainless steel float ball switch and other brass products. Widely be used in automatic application of welding, irrigation, ironing, food process, inductive sanitary, water auto supply, home appliance industry.
Quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are exported all over the world.
Welcome to choose our varied products. We have powerful technical support, steady quality and good service. We'd very like to have cooperation with you in a long term relationship.
