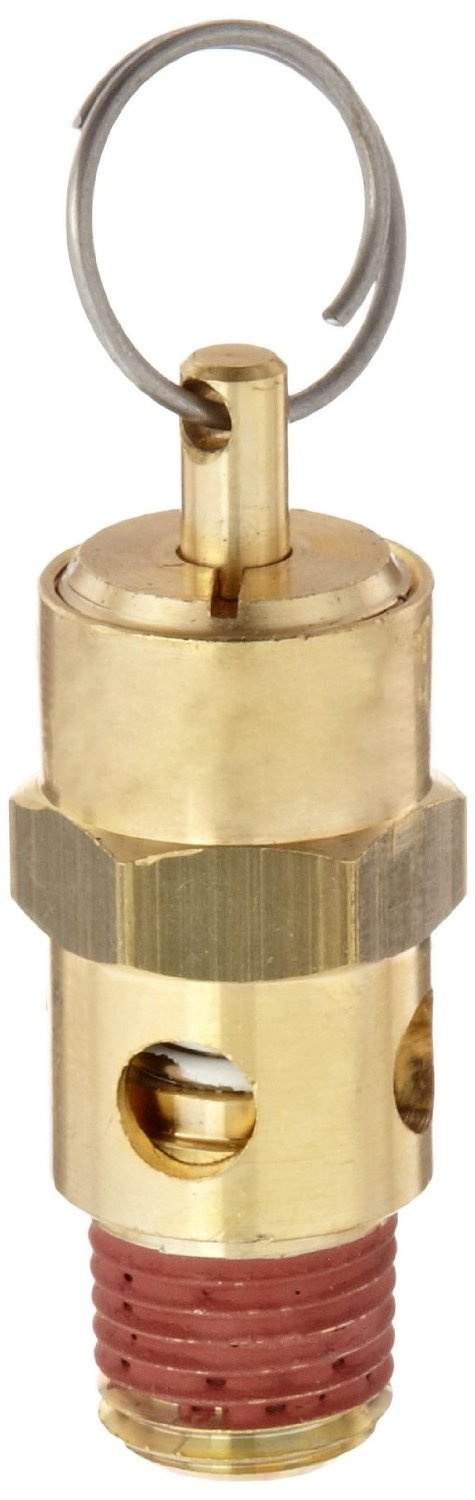

Brass Asme Safety Valve

Brass Asme Safety Valve
Price: US $ 0.2-1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Product Features

Relief pressure preset to 125 psi with flow rate of 116 cfm
1/4" male NPT threaded inlet connection
Brass construction and stainless steel spring for corrosion resistance
250 degrees F maximum temperature for use in high temperature applications
ASME safety rated with UV and NB marks



Product name
Pressure Relief Valve
Port Size 1/2"-2"
Working pressure0.1-1.6Mpa
matrialbrass,steel
Temperature range-10°F to 300°F(-23oC to 148oC)
FunctionBalancing, Set-advanced, Measure, Shut-off,Leakage(Optional)



Product Description

This safety valve has a brass body, a 125 psi relief pressure, a 1/4" male NPT threaded inlet connection, and a stainless steel pull ring for manual pressure relief. The valve's brass body, brass valve seat, and the zinc plated steel spring resist corrosion and can be used in operating temperatures up to 250 degrees F. The preset relief pressure is accurate to within +/- 3 percent and a silicon O-ring provides a leak-proof seal to within +/- 10 percent of the relief pressure. This safety valve is American Society of Mechanical Engineers (ASME) safety rated and displays the UV mark for pressure vessel safety valves. It also displays the NB mark for certification in accordance with NB-501, National Board Certification of Pressure Relief Devices. This safety valve has a 116 cubic feet per minute (CFM) flow rate and is suitable for low capacity pressure relief applications such as in home construction air compressors.

Relief valves remove excess pressure or vacuum from a system. The valve openings allow fluids or gases to escape to decrease pressure, and then close once the valve reaches the reseating pressure limit. They also relieve excess vacuum by opening to release a gas into the system and then closing after it reaches its low-pressure limit. Some relief valves have an adjustment mechanism to set the pressure where the valve opens, making it suitable for various applications. Relief valves are rated according to the volume of liquid or gas that can flow through them and the material that the valve is constructed from must be suitable for the fluid or gas, which may be corrosive or at an extreme temperature, in which it operates. Relief valves are used in a variety of applications, such as air compressors, petrochemical and chemical manufacturing, natural gas processing, and power generation.


Prod Model: BS-1115
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Boss
Items: 1115
Product Name: Pressure Relief Valve
Thread Size: 1/4"
Overall Height: 11/16 Inches
Overall Length: 2.0 Inches
Maximum Flow Rate: 116 Cubic Feet Per Minute
Sample: Free of Charge
Material: Brass
Connector Type: NPT Male
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.

Business scope: Vavle and pump develope, manufacture, sell and service.

Looking for abroad companies agent biz

Advantage:

1, CNC machines 20 sets

2, production lines: 4

3, CE, asme products

4, follow Germany and Italy technology

5, 3 stores and 2 factoreis

Company Policy: Honest, Service, Quality

Welcome to your visit warmly.
