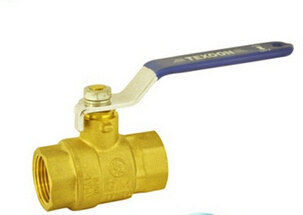

Brass Ball Valve with Brass Colour
| Price: |
US $ 1.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Piece |
| Pay Type: |
L/C,T/T |
Taizhou Tengyu Brass Co., Ltd., is an professional manufacturer for brass products, we have nearly 15 years for producing, the item YT-Q001 is one of our products.
Our Size as bellow:
1/2", 3/4", 1", 1(1/2)", 2"
| NO. | ITEM | TOTAL | MATERIAL |
| 1 | BALL VALVE BODY | 1 | BRASS |
| 2 | SEALING WASHER | 2 | PTFE |
| 3 | BALL | 1 | BRASS |
| 4 | O-RING | 1 | NBR |
| 5 | PACKING NUT | 1 | BRASS |
| 6 | STEM | 1 | BRASS |
| 7 | HANDLE NUT | 1 | PLATED STEEL |
| 8 | LOCK WASHER | 1 | PLATED STEEL |
| 9 | BALL PACKING | 1 | PTFE |
| 10 | HANDLE | 1 | PLATED STEEL |
| 11 | BALL VALVE CAP | 1 | BRASS |
SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| DN | 10 | 10 | 15 | 19 | 25 | 32 | 40 | 50 | 64 | 75 | 99 |
| W | 44 | 44 | 58 | 64 | 75.5 | 87.5 | 98.5 | 109 | 142 | 161 | 199 |
| H | 43 | 43 | 46 | 60 | 64 | 64 | 69 | 77 | 108 | 125 | 148.5 |
| L | 85 | 85 | 85 | 109 | 109 | 143 | 143 | 143 | 197 | 212.5 | 235
|
| Prod Model: |
jk8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valves: |
Valve |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
