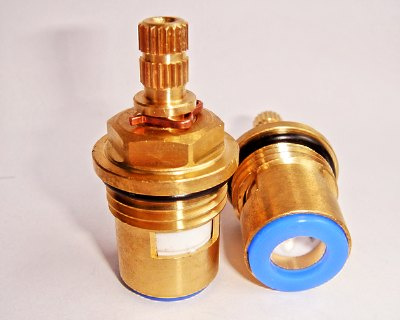

Item no.: K4-D006D
Demension: 50g
Class: Quick Opening 1/2
Professional according to customer's samples or drawings customized production.
NO. | C omponent name | Material |
1 | Garter spring | QSn6.5-0.1 |
2 | Valve Body | HPb59-1 |
3 | "O" ring Gasket | EPDM/NBR |
4 | "O" ring Gasket | EPDM/NBR |
5 | Lubricating Washer | PTFE |
6 | Levers of Valve | HPb59-1 |
7 | Noise Reducer | POM |
8 | Moving Ceramic Disc | Al2O3 ≥ 96% |
9 | Fixed Ceramic Disc | Al2O3 ≥ 96% |
10 | Sealing Gasket | Silicone |
11 | Inside the copper | HPb59-1 |
12 | Sealing Gasket | Silicone |
With years development of ceramic valve core technology, KANGTO VALVE CORE Co., Ltd. QUANZHOU, China creates the brand new valve core and have attained the ISO9001 international quality management system certificate.
Our company specifically deploys the precise numerical control equipment for the production line of processing valve body and valve pole. Our products are scientifically designed with reliable quality. The materials are nontoxic, scentless and smell-less. All the products completely passed the turn-on-torsional test and pressure test. We concentrate on producing the senior and secondary ceramic valve core and promise on leak after using 500, 000 times.
Our products are mainly sold to the famous enterprise of China( such as JOMOO, JOYOU, HHSN) and exported to regions as far as Europe, Southeast Asia, India etc.
Our principle is "safety as first priority. Quality for development and new peak of profit". Welcome for your visiting and further cooperation.
