| TABLE OF DIMENSIONS |
| SIZE | DN | LENG OF BODY | HIGHTH OF HANDLE | LENGTH OF THREAD | LENGTH OF HANDLE |
| 1/2" | 15 | 44 | 71.5 | 47.5 | 15 |
| 3/4" | 20 | 48 | 75.5 | 47.5 | 17 |
| 1" | 25 | 62 | 102 | 69 | 24 |
| 11/4" | 32 | 65 | 109 | 73 | 30 |
| 11/2" | 40 | 71 | 123 | 87 | 37 |
| 2" | 50 | 78 | 137 | 98 | 46 |
| 21/2" | 65 | 80 | 168 | 98 | 59 |
| 3" | 80 | 85 | 189 | 105 | 68 |
| 4" | 100 | 102 | 236 | 122 | 84 |

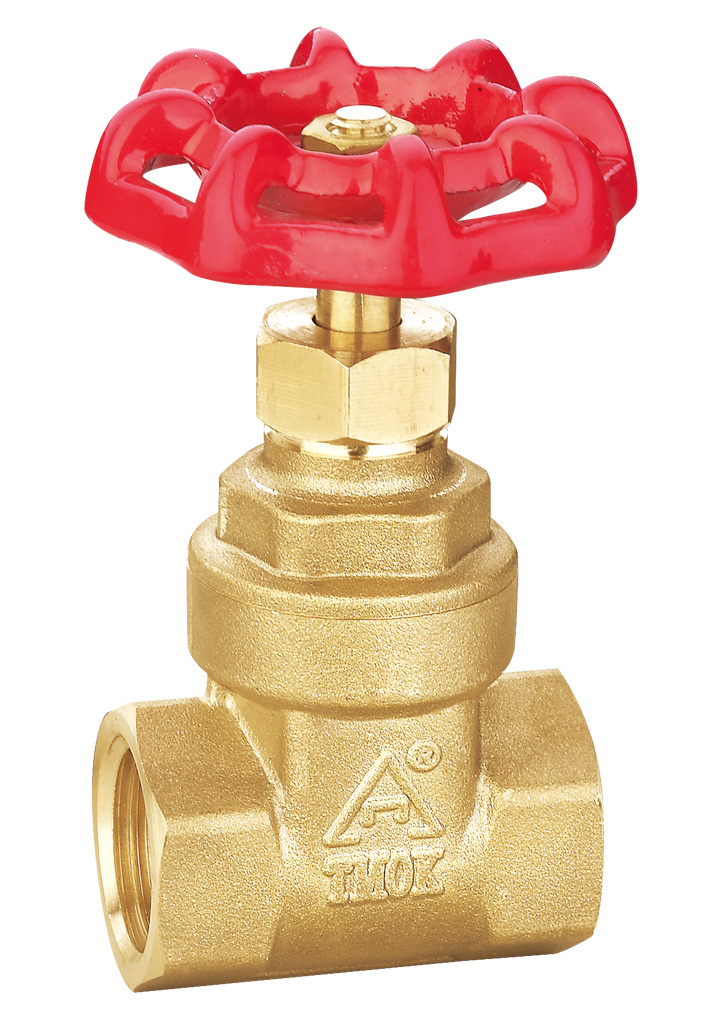

Brass gate valve
Body material: Brass
Thread: Solder hole
Body material: Brass
Wedge Disc: Brass
Spindle: Brass
Gland: Brass
Packing: PTFE
Handle: Casted steel handwheel
Surface treatment: Sands blasted
Temperature range: -20 + 120 C
Working pressure: PN16
DN: 15-32mm
High quality
Package: Standard export carton and pallet.
Taizhou Chunhong Copper Industry Co., Ltd. Was founded in 1989, as an engineering company specialized in brass valve designing and manufacturing for Fluid control Industry. Now it has one new name that is YUHUAN OUJIA VALVE Co., Ltd.
Brass ball valve, brass gate valve, brass stop valve, brass bibcock, brass angle valve, brass check valve, brass filter valve, brass float valve, brass other valve, brass fitting, faucet and bath accessories are manufactured in our factory.
High quality goods production requires the right material selection, different forging techniques and precision machining with quality assurance. OUJIA has a complete line for all the processes, beginning back from the foundry or forging to the machining process, is performed by computer controlled machines. We strive to carve our own products through attractive designs, hard working and responsible employees and own mission to satisfy every customer.
Today, with continuing R&D to meet the ever-increasing expectations, OUJIA maintains its capacity and quality standards in the global market with a steady growth. And our products have won a good reputation both at home and abroad. QUALITY, JIT and SERVICES are strong points of our mission.
President Mr. Dai Shangjun sincerely wishes to cooperate with customers from all over the world. Experienced and succeed OUJIA is always ready to provide you the best products and service.
