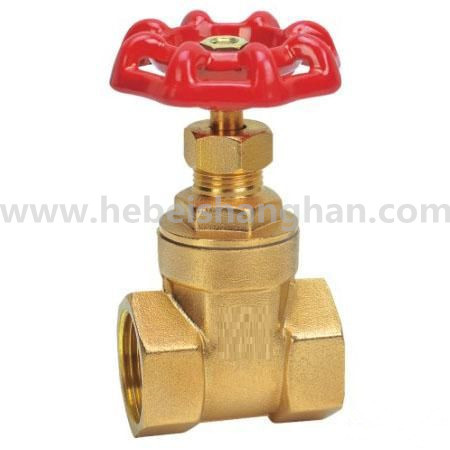

Specification of our Stem gate valve :
Name: | Brass Gate valve |
| Size: | 3/8", ½" . ¾" . 1", 1¼" .1½" . 2", 2-1/2", 3", 4" |
| Material | 58-3A or CW617N or DZR |
| Working Pressure | 1Bar≤P≤16Bar |
| Working Temperature | -20°C≤T≤170°C |
| Suitable Medium: | Water, Non-Causticity Liquid & Saturated Steam |
| Threads | BSP or NPT |
| Finish | Yellow Brass |
| Place of Origin | Zhejiang China(Mainland) |
| Delivery Port | Ningbo or Shanghai,China |
| Delivery Time | 30days |
| Terms of payment | L/C ,T/T |
| Supply ability | 3000 per day |
| Minimum order | 100PCS |
| Package | White Box then Standard Export Carton & Pallet.If customer has special requirement.It is available to provide the colorful package according to the design of customers |
Longrun 574 New Design Brass Water Gate Valve
1. 100% Leak Test
2. Certification: ISO9001 and ISO14001
3. High Quality and Best Price
Specification
1.Material: C3771, C37700N, CW614N, CW617N, MS58 as per request
2.Handle: Forged Steel, Aluminum, Flat Steel with plastic cover or Butterfly "T" type
3.Thread: BSP, BSPT, NPT, ANSI BI 20.1 or as per request
4.Size: 3/4" to 2", DN20 to DN50
5.Working Pressure: 1.6MPa (PN16) (300psi)
6.Working Medium: Water, non-corrosive liquid, non-corrosive air
7.Working Temperature: -20°C≤t≤100°C
8.Forged brass body with chrome plated solid brass ball
9.Sealing: EPDM, PTFE or Teflon
Technical Standard
Nominal Pressure | 1.6 MPa |
| Working Medium | Water, Non-causticity liquid |
| Working Temperature | 20°c≤T ≤ 100 °c |
| Parallel Pipe Thread | ISO228, BSP, NPT, etc
|
Hebei Shanghan Import&Export Trade Co., Ltd is one of the Chinese promising companies. It is a young company whose business operations cover a broad spectrum of international trade activities and equipment manufacturing and supply. Our factory built in 2004, it is located in the southeast of Hengshui.
Hebei Shanghan Import&Export Trade Co., Ltd serves as China's largest supplier of camping house and petroleum equipment, holding a dominant position in domestic petroleum equipment accessories. At the same time, Hebei Shanghan Import&Export Trade Co., Ltd is also a major supplier of refined oil products and petrochemicals. As one of the largest service suppliers in the global petroleum and petrochemical industries, Hebei Shanghan Import&Export Trade Co., Ltd can also provide operational services and technical support in such areas as geophysical prospecting, well drilling, logging, well testing, downhole operations, oilfield surface facilities construction, pipeline construction, refining and petrochemical projects, and manufacturing and supply of petroleum equipment.
By the end of 2012, there were 20 overseas exploration and production projects in 12 countries or areas such as Saudi Arabia, American, England, Kuwait, Libya, Iraq, Kazakhstan, Turkmenistan, Mexico, Russia, Venezuela, and Iran etc.
