| Price: | US $ 2-50/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |

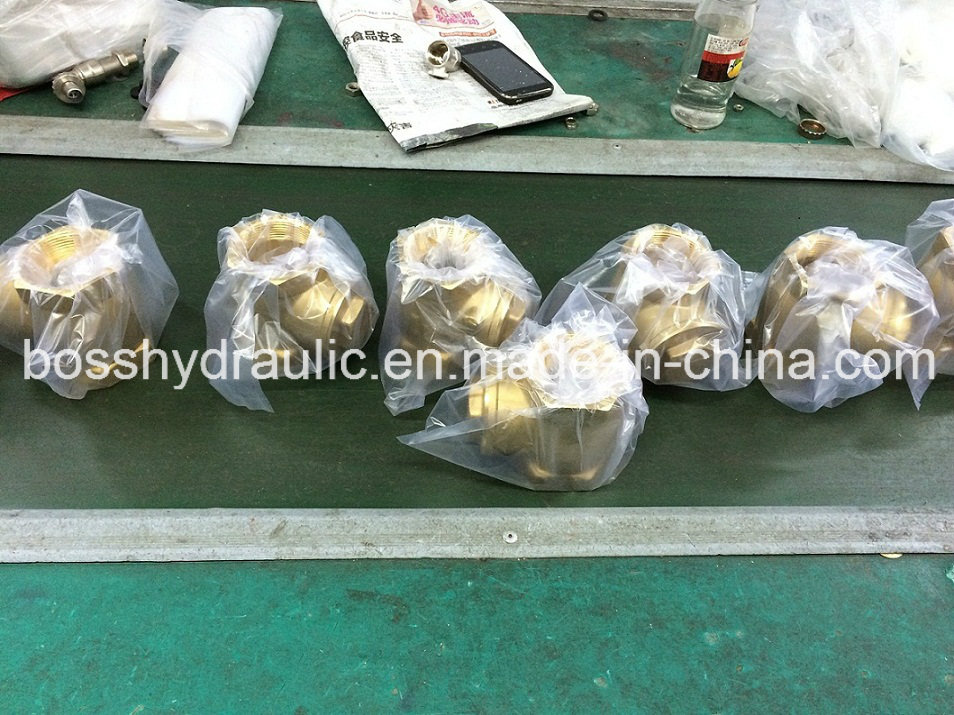

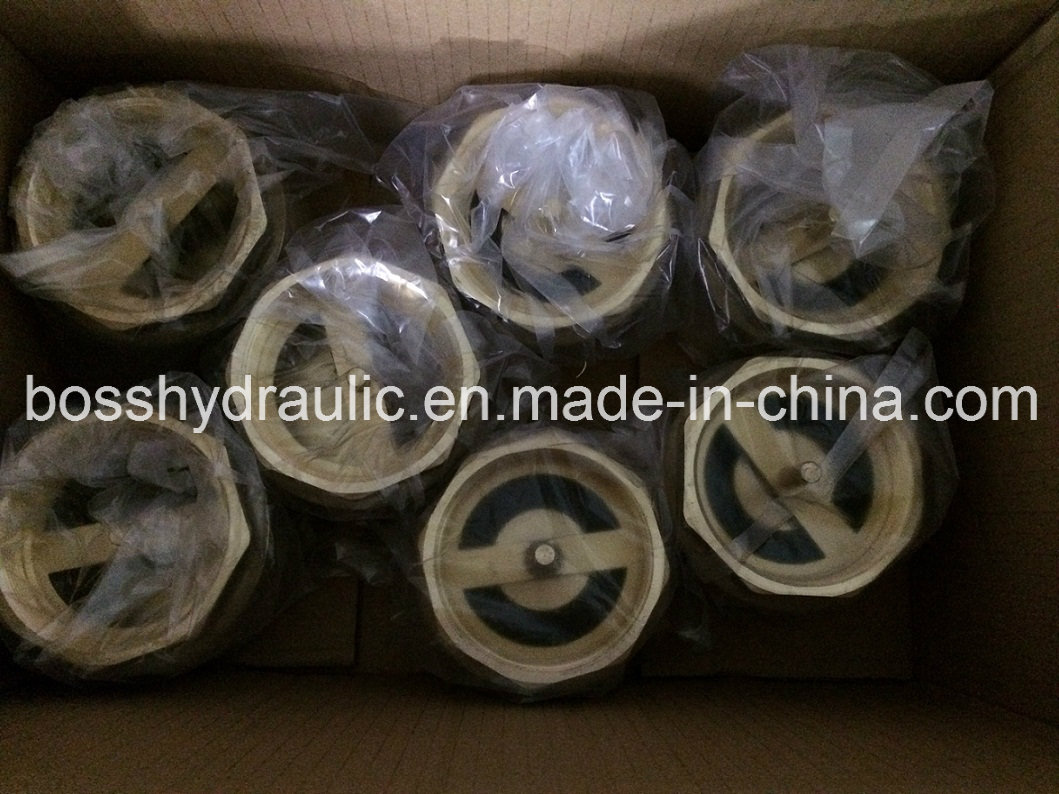

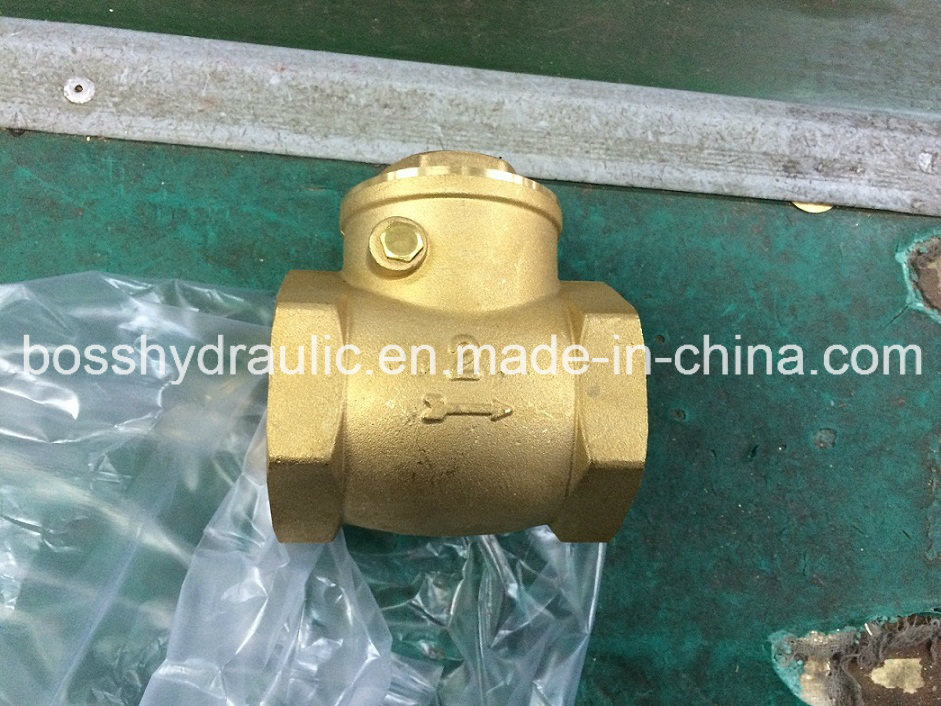

Brass Horizontal Check Valve
1.Nominal pressure:1.6MPa
2.Working medium:Water,oil
1.Before assembling,all parts will be cleaned, no oil or grease. Remove all burrs and sharp edges.
2.Before connecting,body cap male thread should be coated with sealing glue.
3.Handle turn or close freely
4.After assembling,test by air at pressure no less than 0.8Mpa,no leakage.
| FIG NO. | BS-F003 | ||
| Price Range | $ 2.5 ~ $ 116.8 | ||
| Valve Standard | MSS SP-80 Threaded to BS 21(ISO7)/ASME B1.20.1 | ||
| Size Range | 15mm (1/2") ~ 100 mm(4") | ||
| Working pressure | 300psi (20.7 bar)WOG Non-Shock 150psi (10.3 bar)Saturated Steam | ||
| Testing Pressure | Shell:450psi (31bar)Hydrostatic Seat:330psi(22.7bar)Hydrostatic 80psi (5.5bar) Air | ||
| Suitable Media | Water Oil Gas | ||
| Material List | |||
| Part | Material | ASTM | BS |
| Body | Brass | B124 C38800 | 2847 Cz122 |
| Cap | Brass | B124 C38800 | 2847 CZ122 |
| Disc | Brass | B124 C38800 | 2874 CZ122 |
| Hinge Pin | Brass Rod | B124 C38800 | 2874 CZ122 |
| Gasket | Non Asbestos | ||
| Prod Model: | BS-F003 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: | Boss |
| Item: | BS-F003 |
| Material Type: | Brass |
| Media: | Water |
| OEM: | Available |
| Sample: | Available |
| Port Size: | 1/2" - 4" |
| Thread: | BS 21(ISO7) / Asme B 1.20.1 |
| Type Standard: | Mss Sp-80 |
| Structure Type: | Check |
| Material: | Brass |
| Connection Form: | Thread |
| Structure: | Butterfly |
| Function: | Nrvg Silence |
| Application: | Household Usage |
