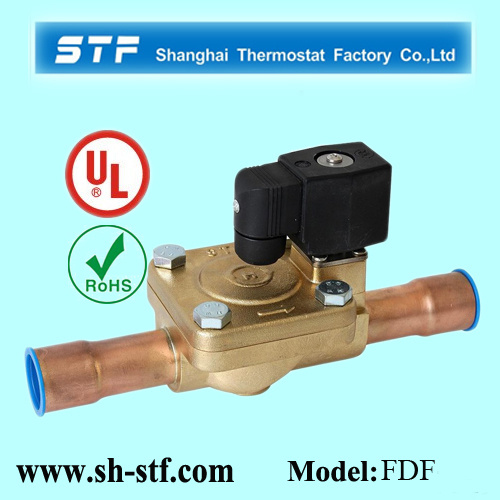

Brass Solenoid Valve for Pneumatic

Brass Solenoid Valve for Pneumatic

General:

FDF series are direct or servo operated solenoid valves for liquid, suction, and hot gas lines with fluorinated refrigerants.

Characteristics:
Complete range of solenoid valves for refrigeration, freezing and air conditioning plant.
Supplied both normally closed (NC) and normally open (NO) with de-energized coils.
Wide choices of coils for A. C. And D. C
Suitable for all fluorinated refrigerants.
Opening pressure diff.:

Pilot type Direct-acting type
AC: 0.05-21bar AC: 0-21bar
DC: 0.05-17bar DC: 0-17bar

Max working pressure: 30bar.
Temperature of medium: -25º C~105º C.
FDF is also available with flange connections.
Versions with UL and CUL approval can be supplied to order.
Operating principle:

FDF-B, FDF-Z series solenoid valves are the direct-acting type valves. The pull of the solenoid coil opens the valve port directly by lifting the seat disc off the valve seat. While de-energized in the coil, plug stem will drop and close the valve port because of spring force and its weight.
FDF-M series solenoid valves are pilot type valves. While energized in coil, the coil emerges magnetic field and picks up plug stem to open the small orifice. With the pressure in the upside of valve reduced, the pressure difference between both side of diaphragm makes the diaphragm lift to open the main orifice. While de-energized in the coil, plug stem will drop and close the small orifice because of spring force and its weight. The flow medium enters into upside of diaphragm through throttle hole, then pressure in both side of diaphragm, balances, then the diaphragm drops and closes the main orifice.

Model	Connection size		Form of connect	(bar) Opening diff. pressure	Flow rate Kv(m3/h)	Available medium	Temperature of medium	Rated power		Dimensions (mm)
										(NC)			(NO)
	In	mm						AC(V)	DC(V)	length	width	height	length	width	height
FDF3BJ	1/4	6	ODF	(NC)  (AC):0_21  (DC):0_17	0.27	CFC HCFC HFC Air Water and≤4°E viscosity machine oil	-25_105	24 36 110 220	12 24 110 220	117	31	76
	5/16	8
	3/8	10
FDF6MJ	5/16	8		(NC)  (AC):0.05_21  (DC):0.05_17      (NO)  (AC):0.05_18  (DC):0.05_15	0.4					127	45	88	127	45	93
FDF8MJ	3/8	10			0.8
	1/2	12			0.8
FDF10MJ	1/2	12			1.9					151	45	86	151	45	91
	5/8	16			1.9
FDF13MJ	5/8	16			3.0					174	52	98	174	52	115
	3/4	19			3.0
	7/8	22			3.0
FDF16M1	3/4	19			4.5					190	58	98	190	58	115
FDF19M1	7/8	22			4.5
FDF19M2	7/8	22			5.0					230	72	108	230	72	125
FDF19M3	11/8	35			6.0					250	72	108	250	72	125
FDF19M4	9/8	28			6.0
FDF25MJ	9/8	28			9.8					236	72	116	236	72	133
	11/8	35			9.8
FDF32MJ	11/8	35			15					281	86	130	281	86	147
	13/8	42			15
FDF40M	13/8	42		(NC)  (AC):0.3_21  (DC):0.3_17    (NO)  (AC):0.3_18  (DC):0.3_15	25					312	126	158	312	126	171
	17/8	54
FDF25MA		33	Flange	(NC)  (AC):0.05_21  (DC):0.05_17          (NO)  (AC):0.05_18  (DC):0.05_15	9.8					152	112	165	152	112	182
FDF25MF		33			9.8					162	86	175	162	86	192
FDF32MA		38.8			15					162	112	175	162	112	192
FDF32MF		38.8			15					156	86	178	156	86	195
FDF3B		6	SAE	(NC)  (AC):0_21 (DC):0_17	0.27					60	31	76
FDF6MB		8		(NC)  (AC):0.05_21  (DC):0.05_17          (NO)  (AC):0.05_18  (DC):0.05_15	0.4					85	45	85	85	45	90
FDF8MB		10			0.8
FDF10MB		12			1.9					112	58	98	112	58	105
FDF13MB		16			3.0					112	58	98	112	58	105
FDF16MB		19			4.5					144	72	108	144	72	115
FDF19MB		22			6					144	72	108	144	72	115
FDF10MBJ		12			1.9					87	45	85	87	45	90
FDF13MBJ		16			3.0					107	52	98	107	52	115
FDF16MBJ		19			4.5					128	58	108	128	58	125
FDF19MBJ		22			6					128	58	108	128	58	125
FDF2Z	ODM5/8		Right-angle welding	:0_25	0.16					63.5	30	132
FDF3Z	ODM5/8				0.27					63.5	30	85
