Specifications

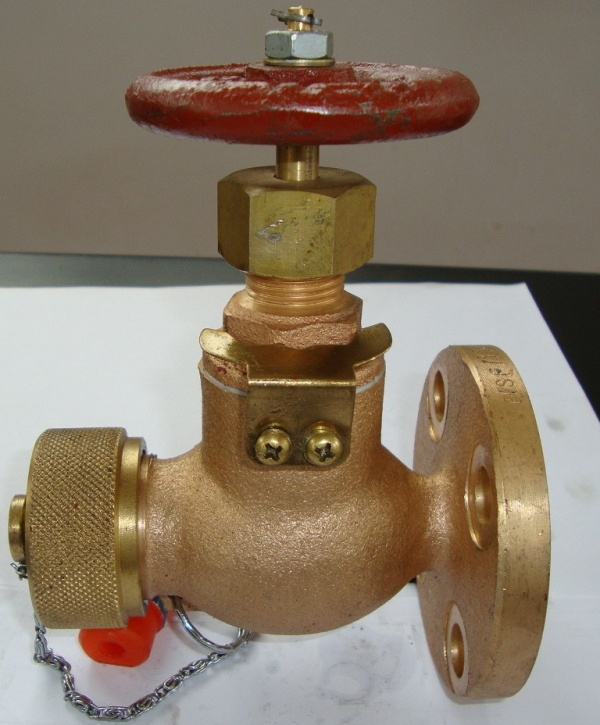

Marine bronze globe hose valves JIS F7334 5K/10K
Bronze or brass material
Marine bronze globe hose valves
Marine bronze hydrant globe valves
Years of experience can ensure the quality product to you, well received most customers.
We sold to Eastsouth, Middle East, Afriac, Europe, Korea, Japan...
Capability:
Nominal Pressure 5kgf/cm2(0.49Mpa)
Seal Pressure 7.7kgf/cm2(0.761Mpa)
Intensity Pressure 10.5kgf/cm2(1.046Mpa)
Medium Max Pressure kgf/cm2(Mpa)
Oil & Flow water 5kgf/cm2(0.49Mpa)
Lenitic water<=120 7KG/CM2(0.69Mpa)
Materials of Body/Trim:
Part name Material
Name Mark
Body, Bonnet Tin-bronze ZQSn10-21
Disc, Seat Albronze QAL9-21
Packing PTFE SFT-2
Qingdao Peer Marine valve Co., Ltd is located in Qingdao JiMo three mile zhuang industrial park, is the main production cast steel, cast iron, cast copper material quality, Japanese standard (JIS) Marine valves, water tank air cap professional company.
In 2005, the enterprise passed the ISO9001: 2000 quality management system certification, the product through the countries society approval. At present, the productions are exported to Japan, Singapore, South Korea, Greece, and other countries.
Welcome people from all walks of life to visit and guide, business talk.
