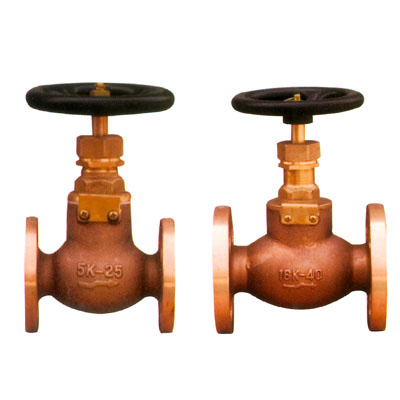

Bronze Globe Valve
MARINE BRONZE 5Kg/cm2 GLOBE VALVES JIS F 7301
MARINE BRONZE 16Kg/cm2 GLOBE VALVES JIS F 7303
| RATING | SIZE | FACE TO FACE | FLANGE | HEIGHT | HANDLE DIA | WEIGHT
(Kg) |
| DIA | PCD | BOLT HOLE |
5kgf/cm2
(F7301) | 15 | 100 | 80 | 60 | 4-12 | 130 | 80 | 2.02 |
| 20 | 110 | 85 | 65 | 4-12 | 140 | 100 | 2.86 |
| 25 | 120 | 95 | 75 | 1-12 | 160 | 125 | 3.54 |
| 32 | 140 | 115 | 90 | 4-15 | 170 | 125 | 5.00 |
| 40 | 160 | 120 | 95 | 4-15 | 190 | 140 | 6.48 |
| 50 | 210 | 130 | 105 | 4-15 | 235 | 140 | 11.70 |
| 65 | 250 | 155 | 103 | 4-15 | 260 | 160 | 17.00 |
16kgf/cm2
(F7303)
| 15 | 110 | 95 | 70 | 4-15 | 130 | 80 | 2.76 |
| 20 | 120 | 100 | 75 | 4-15 | 140 | 100 | 3.72 |
| 25 | 130 | 125 | 90 | 4-19 | 160 | 125 | 5.20 |
| 32 | 160 | 135 | 100 | 4-19 | 170 | 125 | 6.91 |
| 40 | 180 | 140 | 105 | 4-19 | 190 | 140 | 8.43 |
As a marine valve manufacturer, we specialize in producing JIS Standard marine valves and we already get the ISO-DNV & CE Certificate. The products including bronze valve, cast steel valve and cast iron valve. The bronze valve, the sales volume of which amounts to 60, 000 sets per year, production value 100 million RMB yuan, is the key product of Zhongxin and popular in Europe, America and Southeast Asia.
In recent years, Zhongxin has been developing actively the internal market and tries to provide the customers with reasonable price and excellent quality products. All friends are welcome sincerely to visit us.
