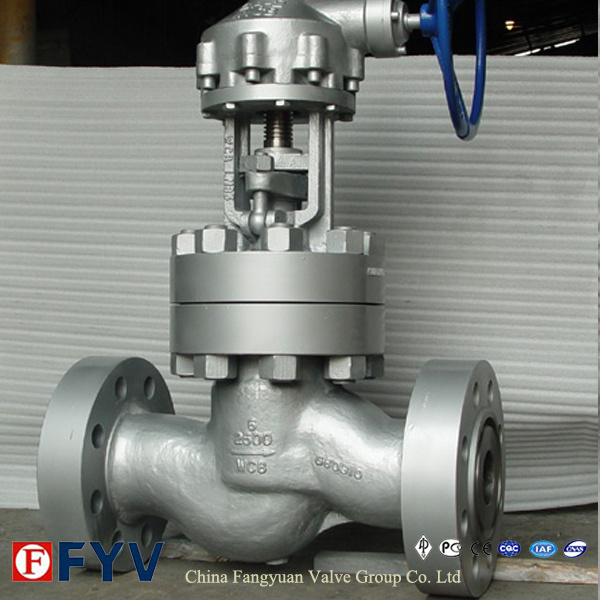

Bs 1873 Globe Valve Flanged End Manual

Bs 1873 Globe Valve Flanged End Manual
Price: US $ 99-199/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Flanged Globe Valve


Product Description

ANSI Flanged globe valve
Stellite globe valve
Material: WCB, Forged steel, SS304 SS316 SS316L, etc.
Specifications: DN15-DN600
Standard: GB, JIS, ANSI,
Pressure: 1.6Mpa~32Mpa(150LB~600LB) 5k~63k
End Connection: Flanged, Welded, Threaded End
Brand: China Dongjin
Working Temperature: -160~550
Type: Full bore
Medium: Water, Oil, Gas Nitric Acid, etc.
Model: J41W-150LB J41W-300LB J41W-600.
Stellite globe valve
Main use
Law orchid connectivity of cutoff valve compliant male call the press PN1.6~16 Maps, working temperature-29~550 oil, chemical engineering, make a medicine and turn fatty, the piping of electric power craft etc. Various work condition up, cutting or switch on piping dielectric. Drive a mode to there is a hand operation, gear drive, electrodynamics and gas moving etc...


Standard
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts



Our Advantages:
1.We Are Factory: FYV has 3 production bases and 1 foundry which located in Wenzhou, Shanghai and Lishui city of China. The Factory Size in Square Meters : 110,000. FYV has over 600 staff members, more than 60 technical engineers, a digital process center and more than 350 sets of various middle and large equipments. The annual sales revenue reaches above $80 million US Dollars.
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

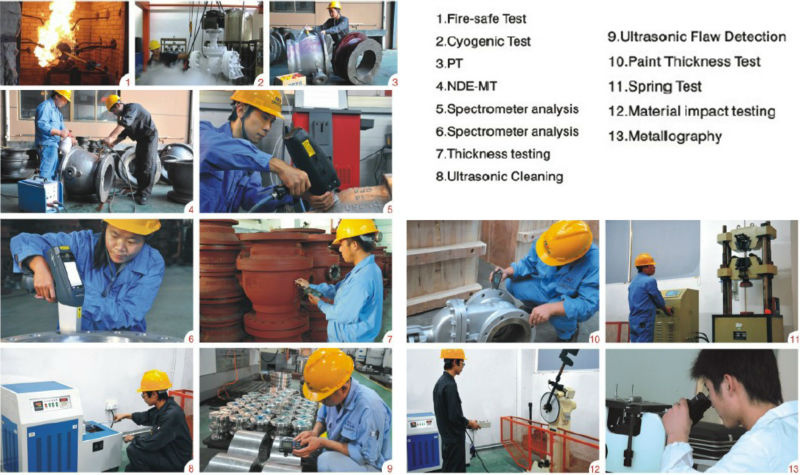

6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices: We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.

We are the professional manufacturer of Globe Valve.



Fangyuan Valve Group has a series of quality control system.



Structural formationBolt-jointed bonnet outside stem yoke structure
Driving mannerHand-operated
Design standardASME B16.34/BS1873
Face to faceASME B16.10
Flanged endsASME B16.5
Test &inspectionAPI598
No.
Accessory Name
Material
1- BodyASTM A216-WCB
ASTMA217-WC1,WC6,WC9,C5
ASTM A351-CF8/CF8M/CF8C/CF3/CF3M
2-NutASTM A194-2H,A194-8,A194-8M
3-BonnetASTM A216-WCB
ASTMA217-WC1,WC6,WC9,C5
ASTM A351-CF8/CF8M/CF8C/CF3/CF3M
4-DiscASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L
5-GasketGraphite+Stainless Steel
6-StudASTM A193-B7,A320-B8,A193-B8M
7-Flat coverASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L
8-StemASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L
9-PackingGraphite
10-Packing press-sleeveASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F304/F316/F321/F304L/F316L
11-Packing glandASTM A216-WCB
ASTM A351-CF8/CF8M/CF8C/CF3/CF3M
12-Valve stem nutCopper alloy
13-HandwheelASTM A47-32510

Prod Model: FYV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"---24"
Structure: Y-Global Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Standard: JIS
Sealing Form: Gland Packings Globe Valve
Application: Bellows Globe Valve
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.

This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.

The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.

Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.

Fully welded ball valve.

Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
