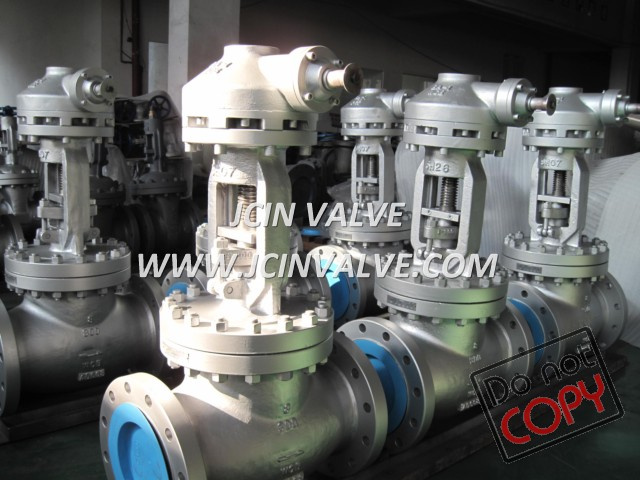

Bs 1873 Globe Valve with Gear Operation

Bs 1873 Globe Valve with Gear Operation
Price: US $ 50-10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Details:
The Globe Valves are primary used to modulate or regulate the volume of the flow, a Globe Valve is not recommended when a continuous full flow of fluid is required due to the high pressure drop inherent to the design of a Globe Valve. The disc of globe valve can be plug type, needle type or parabolic type, globe valves are on/off valves, but sometimes they are utilized in throttling service, globe valves are widely used for the medium of water, steam, oil product, nitric acid, acetic acid, oxygenation, etc.

Applicable Standard
Design Standard: BS 1873, ASME B16.34
Face to Face: ASME B16.10
End Flange: ASME B16.5,
Butt welding Ends: ASME B16.25
Inspection and Test: API 598

Design Features
Straight pattern body design
OS&Y, outside screw and yoke
Needle, parabolic, or plug disc
Renewable or welded seat
Bolted bonnet, back seal structure
Impact hand wheel for 6" and above
Extended stem design for low temperature
Locking devices is available
Size: 2" ~14"
Rating: ANSI 150lb ~ 2500lb
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation: Hand wheel, Gear, Electric, Pneumatic
  Please contact us for other sizes, pressures and materials.

Prod Model: J541H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2"--14"
Class: 150lbs-2500lbs
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: Bs 1873
Application: Through Way Globe Valve
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.

The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.

The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.

JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.

At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.

JCIN VALVE---Your honest partner on Industrial valve.
