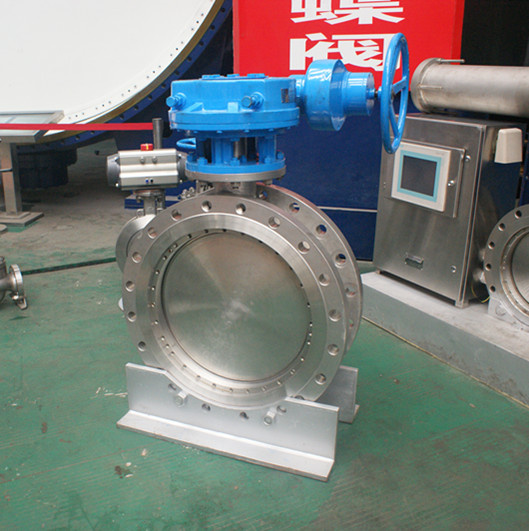

Bs Standard Butterfly Valve

Bs Standard Butterfly Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Working pressure: CLASS 150~CLASS 300
Working temperature: 304 seat -73~+450 ° C
316 seat: -73~+450° C
STL seat: -268~+650° C
Design and manufacture standard: API 609
Flanged end: ASME B 16.5& ASME B 16.47
Face to face dimension: API 609 & MSS SP-68
Test and inspection: API 598
Dimensions
Nominal size: NPS 3~48
Pressure rating: CL. 150~CL. 600
End connection: RF/RTJ/LUG
Seat material: 13Cr/SS/STL
Body material: WCB/LCB/CF8/CF3/CF8M/CF3M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Working Temperature: Normal Temperature (',-40??C
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Seal Form: Force Sealed
Material Of Seal Surface: Metal Hard Sealed
Structure: Three-Eccentric Sealing
Kcm valve co, Ltd. Established in 1983, has 29years history. Kcm is a modernized manufacturing enterprise, which integrates research, develop, manufacture and marketing of industrial valves. Kcm is the abbreviation for the golden key to construct the motherland. It got API, MSS, ISO, EN, BS, JIS, DIN, NF cetifications. Throughout the years kcm has lived up to its kcm meaning as a key to construct the motherland by manufacturing and supplying numerous industrial valves to pipelines in fields of petrochemical, oil refinery, chemical, oil production, electric power station, chemical fertilizer, metallurgical, nuclear power, national defense, pharmaceutical industries. Kcm has become a new and high technological enterprise of zhejiang province, executing unit of the state torch plan projects and a member of sinopec resource equipment market. Kcm major products are gate valve, globe valve, check valve, ball valve, butterfly valve and needle valve with the materials of carbon steel, alloy steel, stainless steel, ultra-low carbon stainless steel and monel etc.
