Home Valve Products Bs1414 API600 Gate Valve -8"Z40h-150lb Wcb

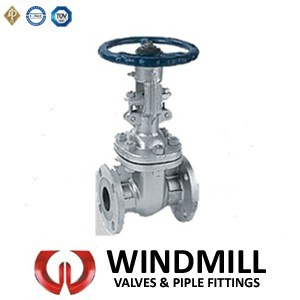

Bs1414 API600 Gate Valve -8"Z40h-150lb Wcb

Bs1414 API600 Gate Valve -8
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Applicable/Product Standards:
Steel Gate Valves Design: API 600 / BS1414
Steel Gate Valves: ISO 10434 / ISO 14313
Steel Gate Valves: ASME B16.34
Face to Face according to: ASME B16.10
Flanges Ends according to: ASME B16.5/ASME B16.47
Butt Welding Ends according to: ASME B16.25
Inspection and Testing according to: API 598 / API 6D

Design/Production Description:
Meet design requirements of ANSI B16.5, B16.34, B16.10, BS1414
B16.25 (for NPS≤ 24), MSS SP-44(for NPS>24), API-600
Inspection and Test: Accord with API 598
Full range of body/bonnet & trim materials
Choice of solid, flexible or split wedge design
Back seating design
Upset forged T-head stem design
OS&Y construction
Renewable seat rings--seal welded
Full port design
Full length wedge guides
Optional impact hand wheel
Optional lengthen stem

WINDMILL Gate Valve Feature:
Full Port Design
OS&Y, Outside Screw and Yoke
BB, Bolted Bonnet
PSB, Pressure Seal Bonnet
Flexible Wedge, Fully Guided
Choice of Solid or Split Wedge
Size: 2"-48"
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Connection: Flanges, RTJ Flange, Butt Weld, Groove

Carbon Steel, Forged Steel, Stainless Steel: WCB, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator.
Prod Model: Z40H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 8"
Pressure: 300lb
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
