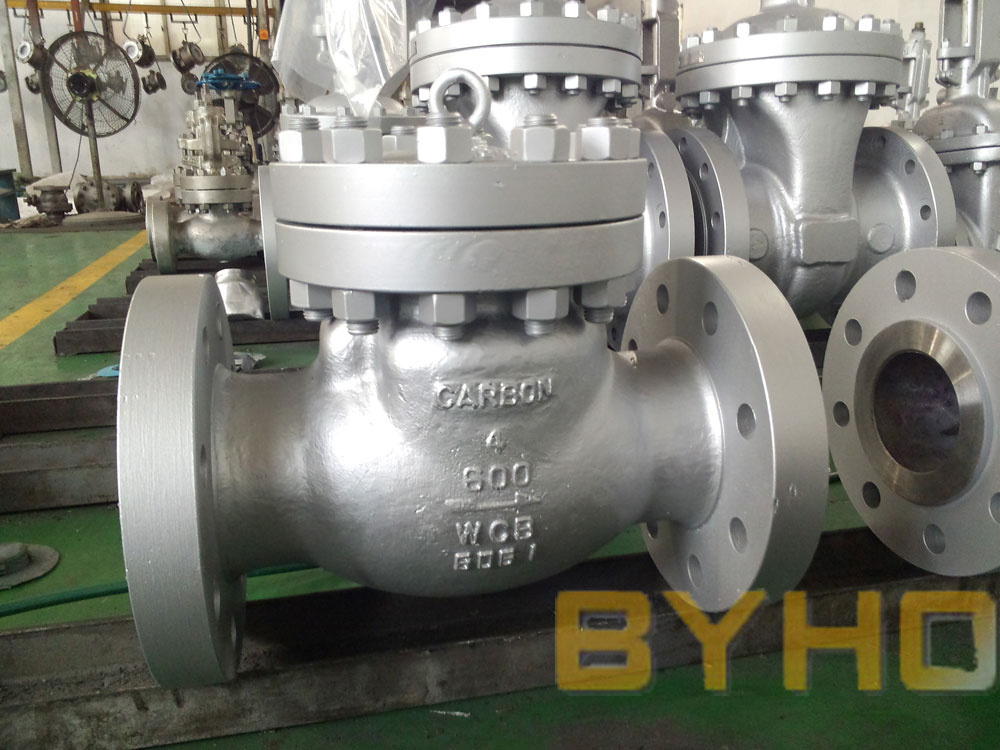

BS1868 Cast Steel Swing Check Valve

Price:	US $ 48-685/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang BYHO Valve Co., Ltd.

Showroom Product Company Profile

Bolted cover, swing type disc
Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M, A351 CF3, A351 CF3M, A351 CN7M

Standards compliance
Design and Manufacture: ANSIB16.34, API6D, BS11868
Face to face(end to end): ANSIB16.10, API6D

Flanged connection:
2~~24~to ANSIB16.5
22~, 26~~36~to MSS-SP-44
To API605 on request

Butt welded end: ANSIB16.25
Test and inspection: API598, API6D

Dimensions
Class 150
Size	inch	2	2-1/2	3	4	5	6	8	10	12	14	16	18	20	24
L,L1-RF.BW	mm	203	216	214	292	330	356	495	622	699	787	864	978	978	1295
L2-RTJ	mm	216	229	254	305	343	368	508	635	717	800	876	991	991	1308
H	mm	155	190	200	225	245	260	350	390	410	435	530	570	625	675
WT.(approx)	Kg	16	25	34	46	75	89	120	220	337	471	575	788	916	1275

Prod Model:	H44H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design:	BS1868, API 600
Face To Face:	Asme B16.10
Flange End:	ANSI B16.5
Test & Inspect:	API 598
Material:	Cast Steel
Connection Form:	Flange
Structure:	Swing
Application:	Household Usage
Function:	Non Return

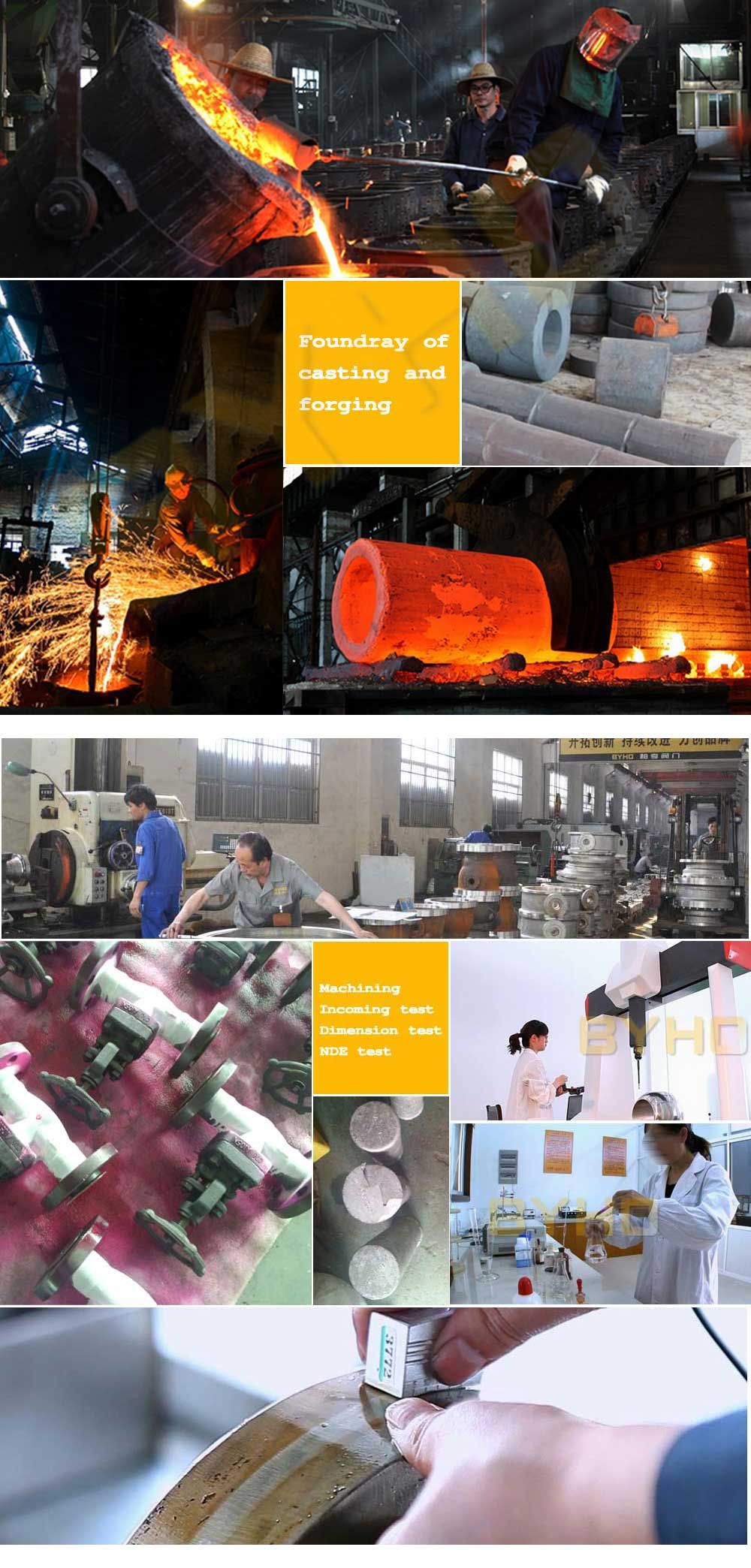

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
