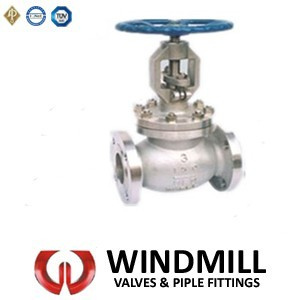

Bs1873 Cast Steel Globe Valve - 3"J41h -150lb Wcc

Bs1873 Cast Steel Globe Valve - 3
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Applicable/Product Standards:
Steel Globe Design: API 600 / BS1873
Steel Valves: ASME B16.34
Face to Face according to: ASME B16.10
Flanges Ends according to: ASME B16.5
Butt Welding Ends according to: ASME B16.25
Inspection and Testing according to: API 598 / API 6D

Design/Production Description:
Meet design requirements of ANSI B16.5, B16.34, B16.10
B16.25 (for NPS≤ 24), MSS SP-44(for NPS>24), API-600
-Straight and Y patteren body design
-OS & Y, outside screw and yoke
-BB, Bolted bonnet
-Yoke intergral with bonnet
-Rising stem and handwheel
-Loose disc, choice of plug or ball
-Renewable seat ring or Body seat ring
-Impact handwheel for 10" & above
-Horizontal servece
-Flanged or buttwelding ends

WINDMILL Globe Valve Feature:
Full Port Design / Globe Stop Design
OS&Y, Outside Screw and Yoke
BB, Bolted Bonnet
Or PSB, Pressure Seal Bonnet
Switt Disc, Fully Guided
Size: 2"-20"
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Connection: Flanges, RTJ Flange, Butt Weld, Groove

Material:
Carbon Steel, Forged Steel, Stainless Steel: WCB, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: JIS
Application: Oxygen Globe Valve
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
