Specifications

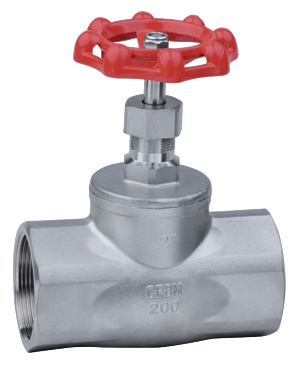

Stainless Steel Globe Valve
Rising stem and non-rising hand wheel
Available with gear operator
Available with actuator
Cast Steel Globe Valve
Specification
Design Description:
API 600 Designs
Outside screw and Yoke
Bolted bonnet
Flexible wedge, fully guided
Renewable seat rings
Rising stem and non-rising hand wheel
Available with gear operator
Available with actuator
Material:
WCB Stainless Steel Casting Steel Carbon Stainless
Ends:
Flanged ends Butt welding ends
Ratings (ANSI): 150LBS 300LBS
Parts material
NO. | Parts name | Material |
Stainless Steel | Cast Steel |
1 | Body | A351 CF8 | A216 WCB |
2 | Disc | A182-F304 | 2Cr13 |
3 | Stem | A182-F304 | A182-6a |
4 | Disc cover | A182-F304 | 2Cr13 |
5 | Spiral wound gasket | PTFE | Flexible Graphite |
6 | The seal seat | F304 | 2Cr13 |
7 | Valve Cover | A351-CF8 | A216-WCB |
8 | Bolt | A193-B8 | A193-2H |
9 | Nut | A194-8 | A194-2H |
10 | Packing | PTFE | Flexible Graphite |
11 | Press kit packing | Cf8 | 2Cr13 |
12 | Packing plate | Cf8 | A216-WCB |
13 | Pin | 410 | 35 |
14 | Bolt | A193-B7 | A193-B7 |
15 | Stem nut | ZCuA110Fe3 | ZCuA110Fe3 |
16 | Screw | 410 | A105 |
17 | Hand wheel | KTH300-8 | KTH300-8 |
18 | Nameplate | L2 | L2 |
19 | Nut | B8 | A194-2H |
20 | Washer | 410 | Q235A |
Shanghai Bocica Valve Co., Ltd. Was founded in the year of 2008, located in Jinshan Industrial Area, Shanghai. We cover an area of 34, 000sqm, including factory structural area of 18, 500sqm, with more than 150 staff members and 88 sets of various facilities, such as machining centers and CNC machines.
We have many years of experience in valve manufacturing and now we are developing fast and stably. Series of ball valves have won national patents. In 2001, our company acquired ISO9001 certificate (the current version is ISO2000), and now we are applying for API-6D and CE certificate. We mainly manufacture the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main products include ball valve, gate valve, globe valve, check valve.
