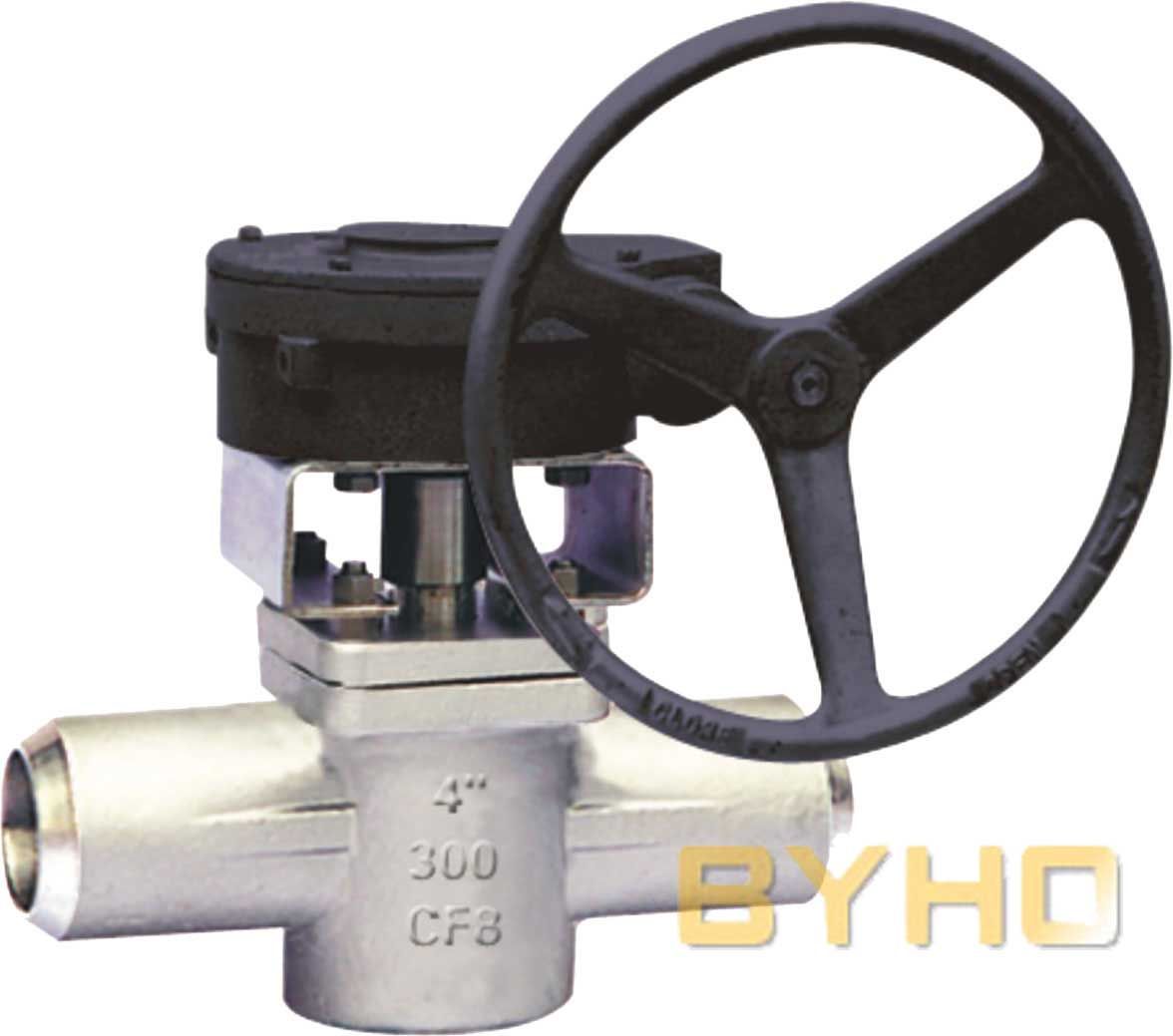

Butt Weld Lubricated Plug Valve

Name: Butt Weld Lubricated Plug Valve
Brand: Valve Industry
SKU: 679609021
Availability: InStock
Rating: 4.6 (132 reviews)

Price:	US $ 40-860/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang BYHO Valve Co., Ltd.

Showroom Product Company Profile

INVERTED PRESSURE BALANCE LUBRICATED PLUG VALVE

Main Structural Features

Bolt cover,structure of flip-chip balanceable pressure and light on/off operation.An oil grove is set between valve body and seal surface,which may infuse the seal grease to increase the seal capability.

Standards Compliance

Design and Manufacture: API 599, API 6D

Face to face(end to end): ANSI B 16.10

Flanged connection: ANSI B16.5

Butt welded end: ANSI B16.25

Test and inspection: API 598, API 6D

Main Pants Materials

NO.	Part name	Material
NO.	Part name	A216 WCB	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
1,2	Body/Nut	A193 B7/A194 2H	A193 B8/A194 8	A193 B8M	A194 8M
3	Cover	A216 WCB	A351 CF8	A351 CF8M
4	Gasket	Flexible graphite+stainless steel/PTFE
5	Plug	A182 F304	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
6	Body	A216 WCB	A351 CF8	A341 CF8M	A182 F304L	A351 CF3M
7	stem	A182 F410	A182 F304	A182 F316	A182 F304L	A351 CF3M
8	O ring	NBR/FEP/SBR
9	Packing	Flexible graphite/PTFE
10	Gland	A216 WCB	A351 CF8	A351 CF8M
11,12	Oichozzle/check valve	Material see body
13	Wrench	ASTM A47-32510 A216 WCB

Dimension & Weight (mm&Kg)

Dimensions
Class 150Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF	mm	108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	10	12	14	17	19	21	29	33	48	75	98	125	171	230	370

Dimensions
Class 300Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	12	14	16	19	21	24	31	36	61	86	130	190	225	380	560

Dimensions
Class 600Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	14	16	18	20	24	29	35	47	91	129	210	320	660	920	1250

Dimensions
Class 900Lb
Size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	17	19	21	24	30	37	44	65	110	160	255	380	810	1050	1460

4" or above with worm gear

Prod Model:	X67H, X67W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Desing And Manutacture:	API 6D API 599 Asme B16.34
Face To Face/End To End:	API 6D Asme B16.10
Flange Dimensions:	ANSI B16.5 Asme B16.25
Pressure Temperature Lating:	ANSI B16.34
Inspection And Test:	API 598 API 6D

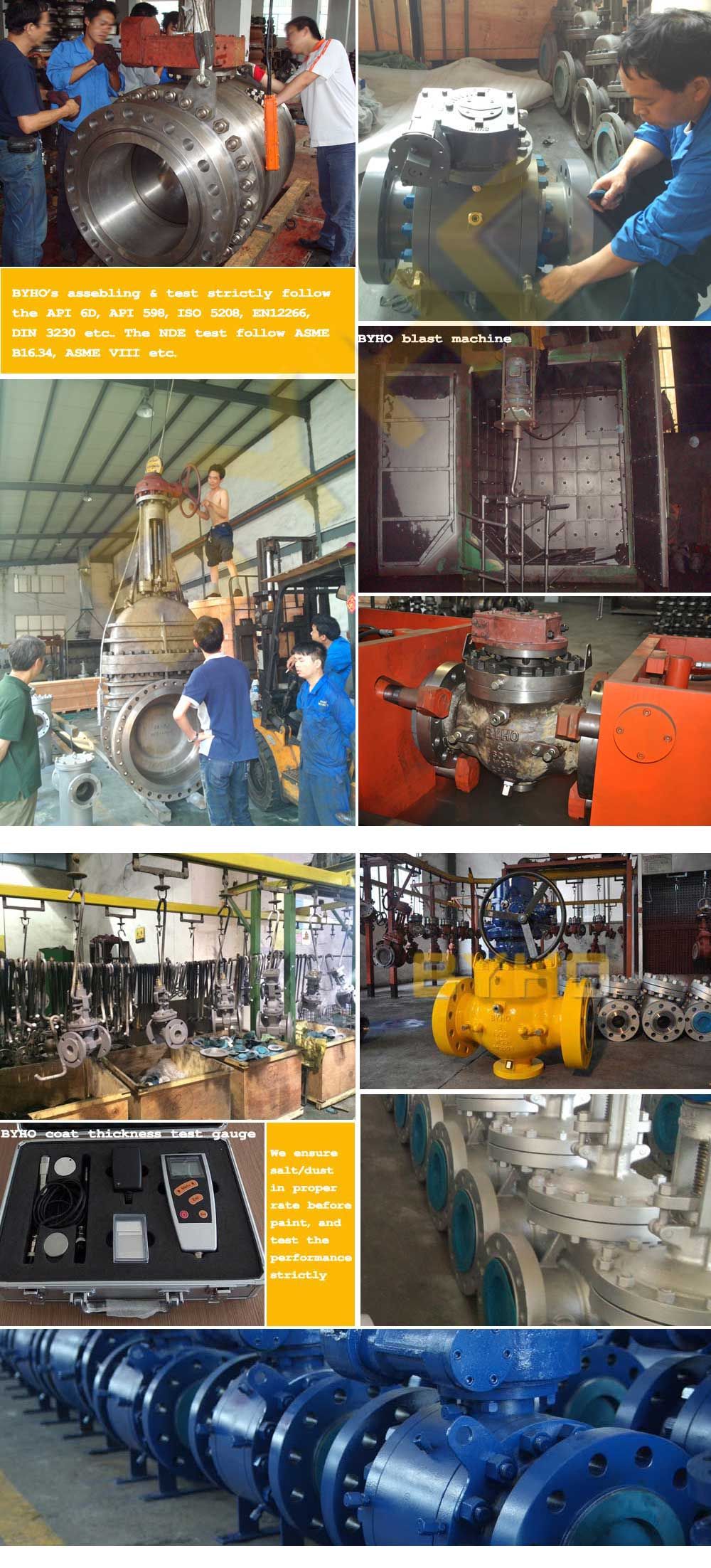

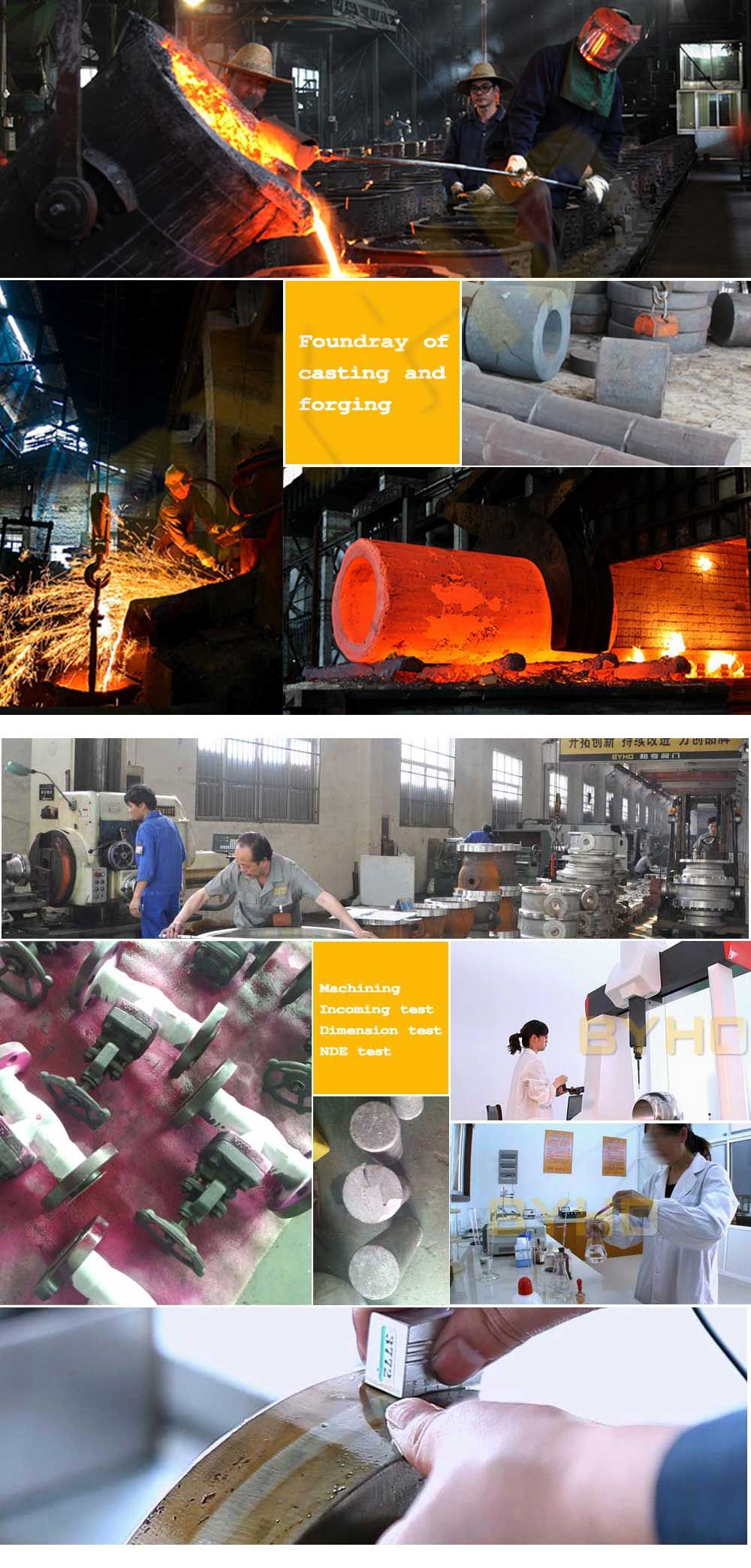

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
