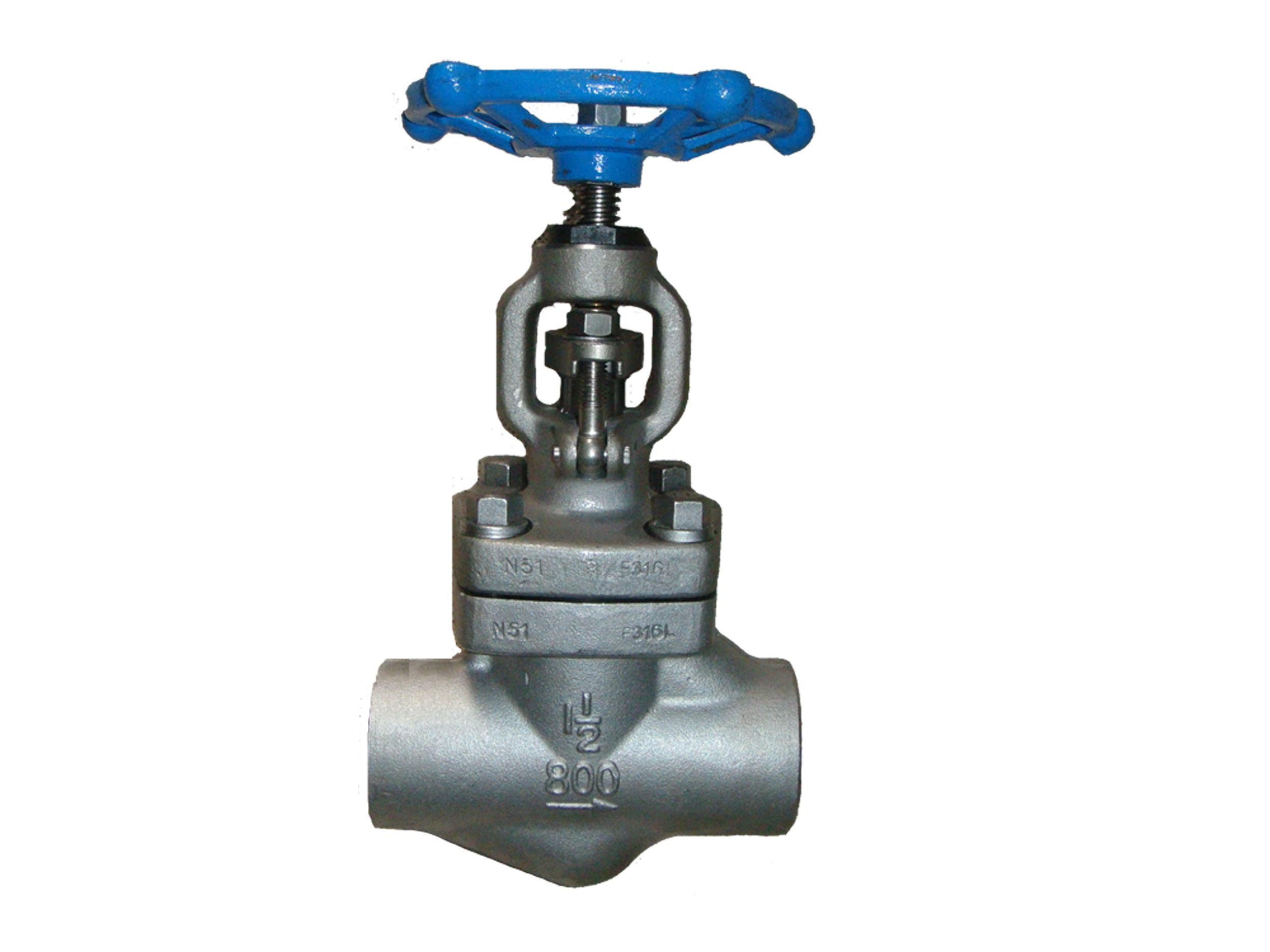

Butt-Welded Forged Globe Valve
| Price: |
Negotiable |
| Min Order: |
1 |
Structure Gate
Pressure Medium Pressure
Power Pneumatic
Material Forged
Temperature of Media Medium Temperature
Media Water
|
|
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
NO. |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Seat Ring |
A276 420 |
A276 04 |
A276 304(L) |
A276 316(L) |
|
3 |
Wedge |
A276 430& 410 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
|
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
8 |
Pin |
A276 420 |
A182 F304 |
|
9 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
|
10 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
11 |
Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
|
12 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
13 |
Yoke Nut |
A276 420 |
|
14 |
H. W. Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 M |
|
15 |
Nameplate |
SS |
|
16 |
Hand wheel |
A197 |
|
17 |
Bearing Gasket |
A473 431 |
|
18 |
Stem Packing |
Flexible Graphite |
PTFE |
|
Suitable Medium |
W. O. G. etc |
W. O. G. etc |
HNO3, CH2OOH etc |
|
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 |
|
|
Reduced |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
|
NPS |
Full |
|
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
L |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
178 |
|
H(OPEN) |
158 |
158 |
169 |
197 |
236 |
246 |
283 |
330 |
|
W |
100 |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
|
Weights |
Bolted |
2.1 |
2 |
2.3 |
4.3 |
5.9 |
6.9 |
11.1 |
15.2 |
|
Welded |
1.8 |
1.7 |
2 |
3.8 |
5.1 |
6.1 |
10.2 |
14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Zhejiang Fangwen Special Steel Co., Ltd. Is a scientific enterprise which integrates valve casting, design, manufacture, sale and service together. It is located in Binhai Economic Development Zone of Wenzhou, 8 kms away from Wenzhou airport, covers 20, 000 square meters. There are 350 employees in the company now. The annual total output value of our company is always more than 34 million USD in the recent years.
The main products are ball valve, gate valve, globe valve, check valve, strainer under the high and medium pressure etc. Materials include Stainless Steel, WCB, Titanium, Nickel, Hastelloy, Monel, Aluminium Bronze, Duplex Stainless Steel and so on. They can be made according to American standard, British standard, German standard, Japanese standard and other related standards. And they are widely used in petrochemical, food, pharmaceutical and other industries. We have exported them to the U. S., Europe, Russia, Middle East and Southeast Asia markets etc. They have been received good reputation by a large quantity of customers because of the reliability and stability.
Fangwen has scientific management. It has passed ISO9001: 2008 international quality system certification, Korea Certification, PED CE safety certification EU Pressure Equipment Directive, API-6D American Petroleum Institute certification, TS pressure pipe valve manufacturing license certification.
The company has the assorted workshops of casting, machining, assembly, testing. There are complete production processes which are smelting, wax model, casting, machine processing. With large sets of casting equipment, hydraulic equipment, machinery processing equipment, numerical control machine tools, vertical, horizontal machining centers, precision measuring instruments and testing devices. We also have high-tech test equipments, such as Shimadzu spectrophotometer and the United States imported portable spectrum analyzer alloy, high-speed ignition infrared carbon-sulfur analyzer, ultrasonic Lee hardness tester, ultrasonic thickness gauge, hydraulic universal testing machine, and a series of dimensional accuracy testing and analysis of the internal microstructure and other non-destructive flaw detector, we has achieved the aim that controlling the quality of the product manufacturing process perfectly.
Fangwen has always insisted on the development strategy which is "people-oriented, technological innovation, integrity management and brand guarantee", we serve the society with high-quality products and perfect services and Committed to the development of national industries.
We sincerely hope to cooperate with the customers all over the world and make more brighter future.
