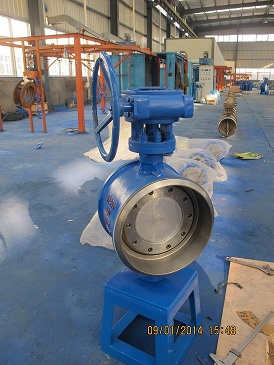

Butt Welded Metal Sealed Butterfly Valve

Butt Welded Metal Sealed Butterfly Valve
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1unit
Pay Type: L/C,T/T,Western Union
D363H Butt welding metal sealed butterfly valve
Part name Material Optional material
1 Body WCB QT450-10\QT500-7\LCB\CF3\CF8
2 Seat SS+Graphite EPDM\FKM
3 Disc WCB Aluminum Bronze\SS\Monel
4 Bushing Luberized Bronze PTFE
5 Gland Q235 SS
6 Bushing PTFE Luberized Bronze
7 Stem WCB 316\Monel
8 Paking Seat F6a
9 Paking Graphite
10 Yoke WCB SS
11 bolts B7 SS
12 Gasket Carbon Steel SS
13 Stud B7 SS
14 Nut 2H SS
15 paking Gland WCB SS
Prod Model: D363H
Markets: Africa,Mid East,Eastern Asia
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Material Of Seal Surface: Metal Hard Sealed
Connection Form: Flange
Structure: Three-Eccentric Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Water Industrial Usage
Henan Yuda valve manufacture Co., Ltd. is an integrated enterprise who set design research and development of the middle and low pressure butterfly and the manufacturing casting processing and sales of the special valve as a whole. It located in Yuda industrial park in the industrial zone in Ruzhou with convenient communications and vantage point. Our company covers an area of 133500 aquare meters and currently employs 420 people, it owns a Henan Yuxing casting Co., Ltd, which is specializing in the valve casting and has a productiong line of model sculpure, resin sand molding production line, V production line casting, precision casting productions line automatic with an annual output of over 1 tons, products are sold to well-known valve manufactures both at home and abroad and has achieved fruitful results. The company has passed ISO9001/2008 quality management system certification. OHSAS18001: 2001 occupational health and safety management certification, EU CE certification of product quality, special equipment manufacturing license forTS(2741069-2017) certification, and has the self-management import and export rights.

Our company is strong in technology, the existing engineering and technical personnel 86 people, 56 of them have intermediate professional titles, 20 of them have long been engagedin valve manufacturing in senior position.

The company mainly engaged in: Bilateral metal hardware sealed butterfly alve, Bidirectional rubber-seated sealing rubber, PTFE-seated buttefly valve, air valve, pipe expansion, pipe flange, gear box and other ancillary products, The valve diameter DN40-DN3200, the pressure rating of 0.1Mpa_6.4Mpa, with flange connection, the clamp, welding, lugs andotherstructure, operatiingmode: Manual, wormgear, pneumatic, electric, hydraulic devices to choose. All products can be produced according to national standard, American Standard, Japanese standard, German standard and other design criteria. Our products are widely applied in the petroleum, chemical industry, metallurgy, building materials, military industry and water supply and drainage, heating, gas supply and other industries.

The valve surface spraying process of our company in compliance with international advanced level, All parts with components can be assembled after spray, which can be completely solve the secondary pollution of valve to the media especially the choice of water supply industry. The company has advanced production technology, complete product resources, strong capital strength, as the strong backup force of the supply valve for you.

Your satisfaction, YuDa's expectation! Your expectations, Yuda's pursuit!
