Specifications

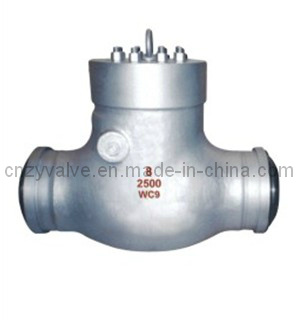

1. High pressure check valve.
2. API 600, E101 design.
3. Pressure seal design
Standards
1. Design and manufacture: API600, ANSI B16.34,E101
2. Face-to-face/end-to-end: ANSI B16.10, E101
3. Butt-welding Design: ANSI B16.25
4. Pressure-temperature rating: ASME B16.34, E101.
5. Inspection and test: API598 ,E101
Material
1. Body: WCB, WC1, WC6, WC9
2. Seat: 15CrMoA, 12Cr1MoVA
3. Disc: WCB, WCI WC6, WC9
4. Stem: WCB, WCI, WC6, WC9
5. Sealing ring: soft steel or reinforced flexible graphite
Description
1. Middle cavity of valve adopts hte pressure sealing strucuture, the high medium pressure,
the better sealing property.
2. Two end of branch pipe is welding connection. It is suitable for different
connection requirement.
3. The withstand pressure parts of valve chooses the excellent alloy steel. It has
the advantages such as good high temperature performance, high bearing pressure, safe
and reliable property.
4. Sealing face of valve flap and valve base adopts the STL cobalt base hard alloy welding
to form. The sealing face hardness is high and it has advantages of anti-abrasion,
anti-high temperature, anti-corrosion, scraping proof and long service life.
5. Valve flap turns around the pipe out valve base. It can reduce the impulse when closing.
6. Pin structure is installed inner. It can reduce the leakage.
